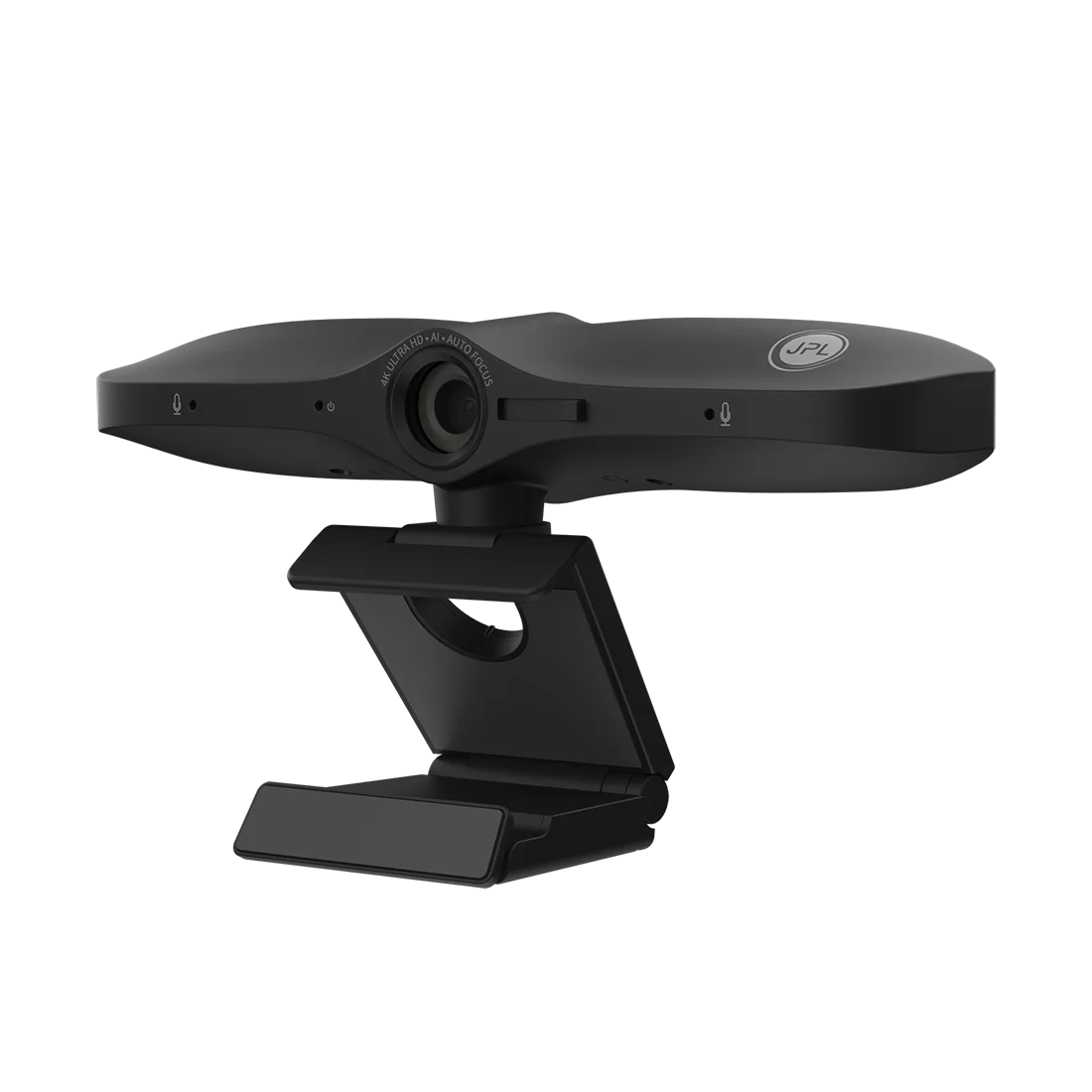

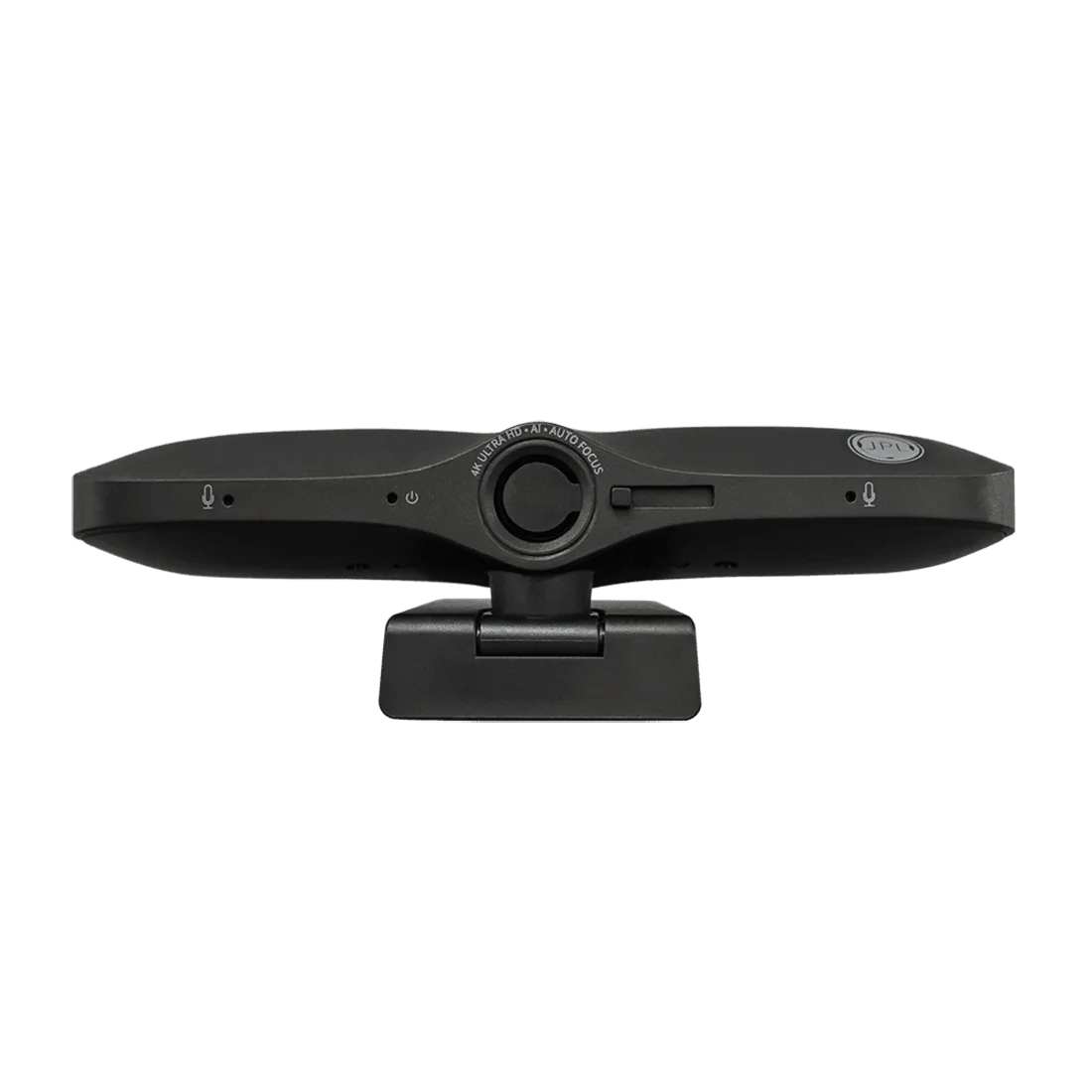

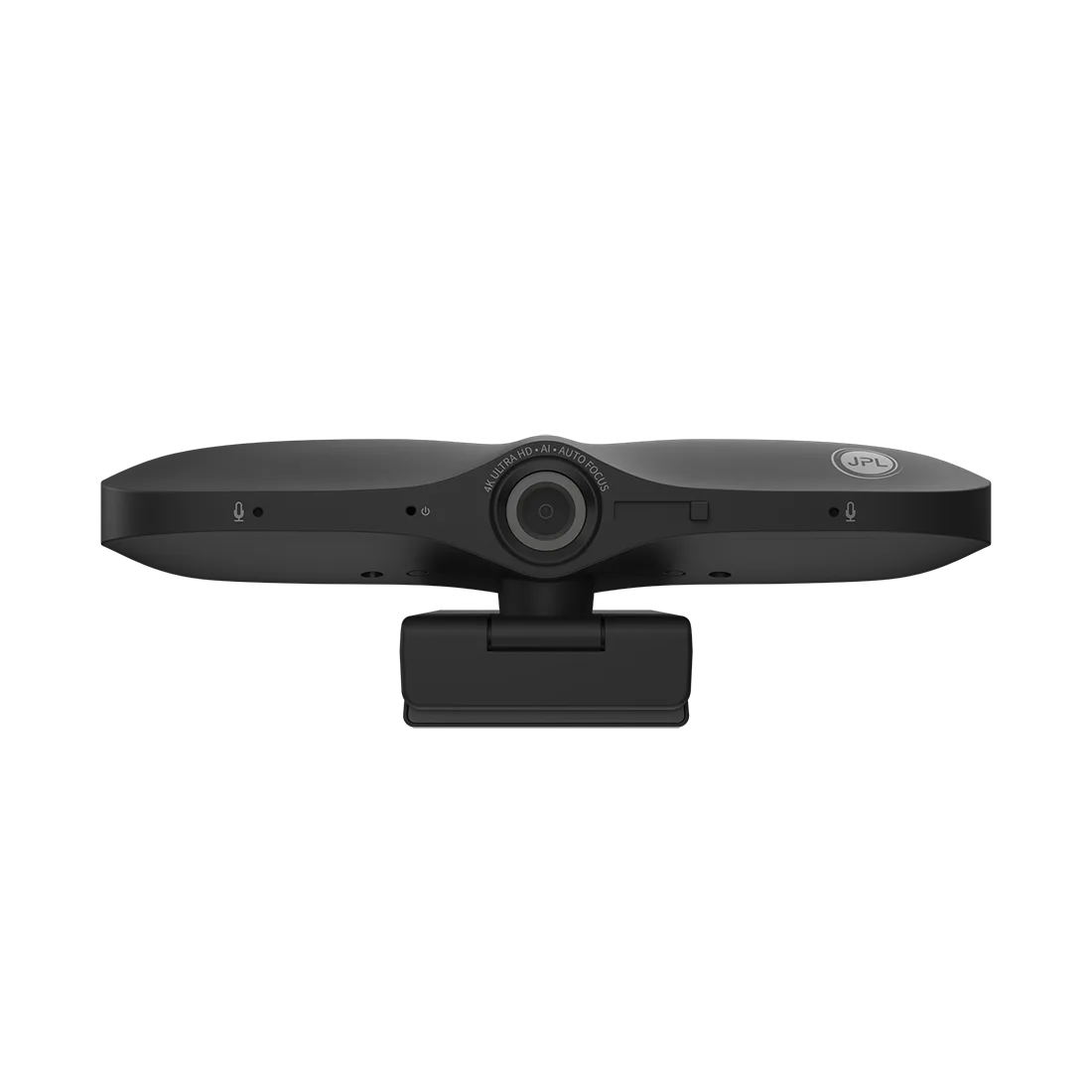

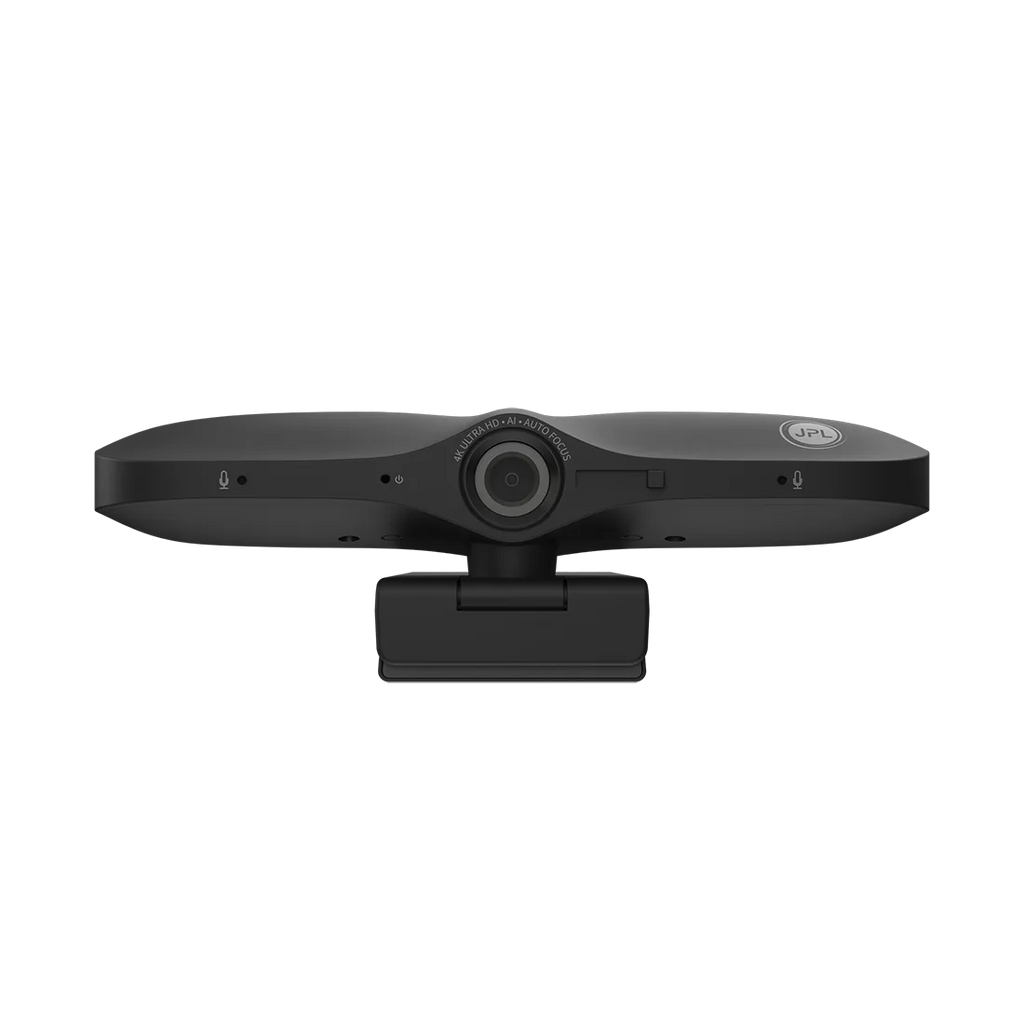

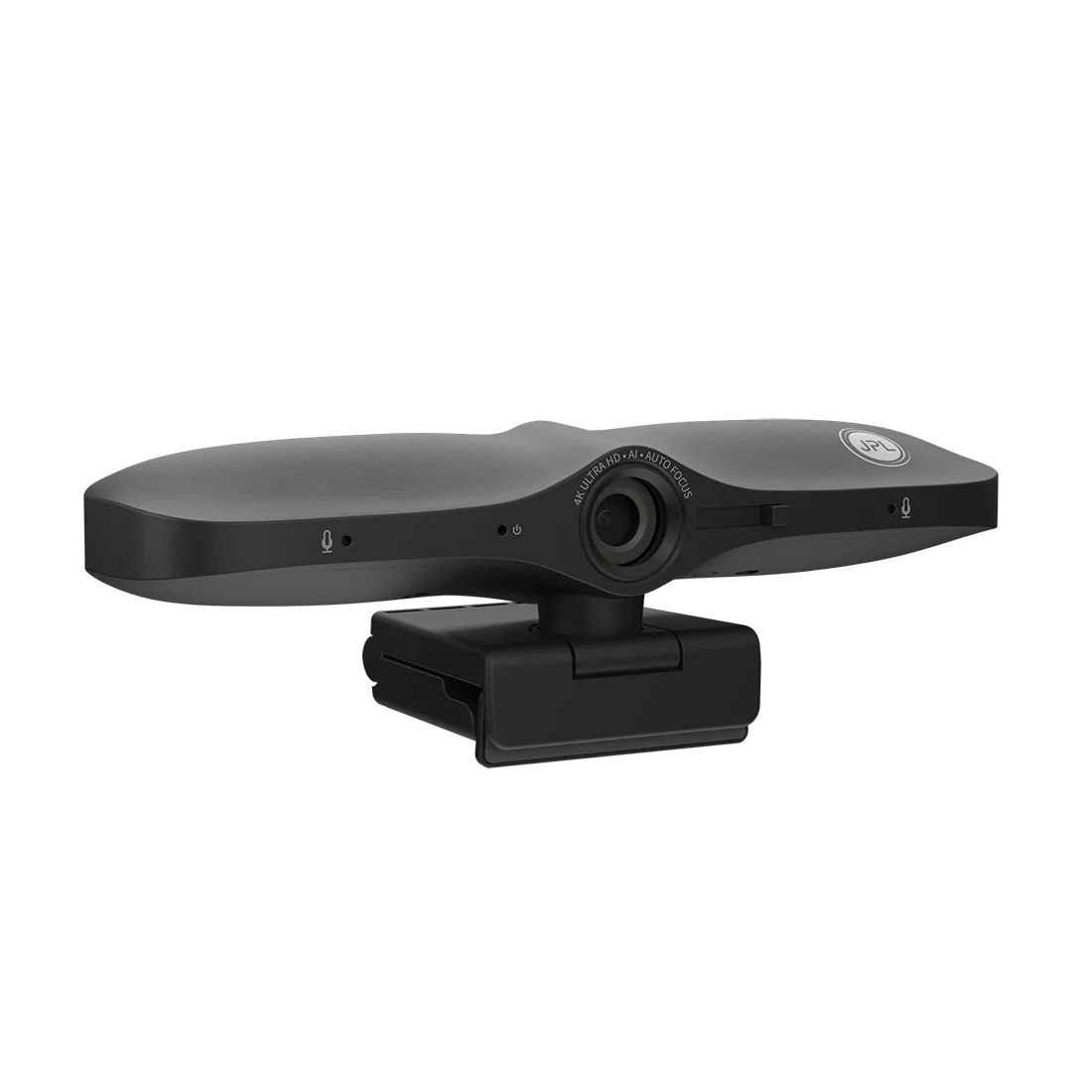

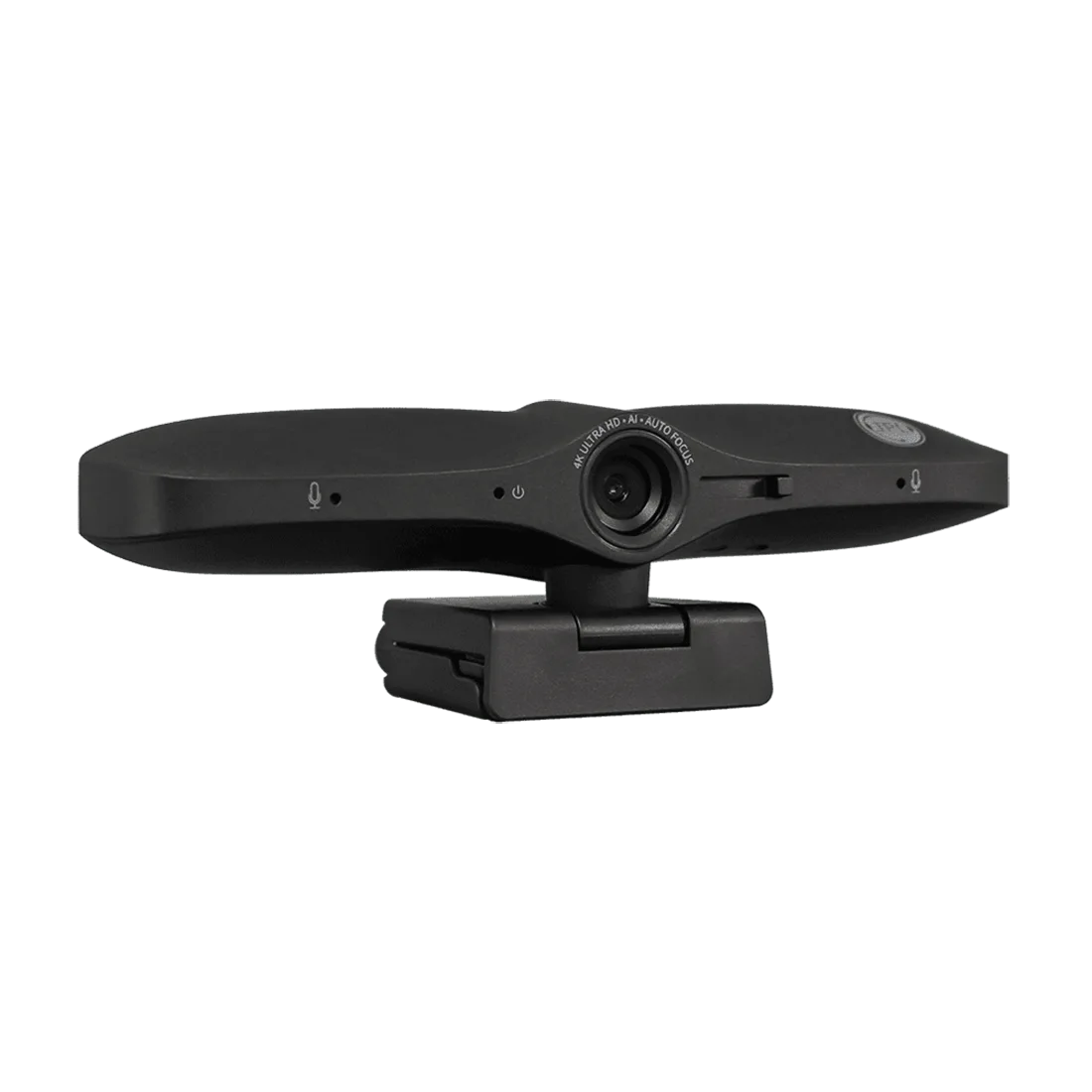

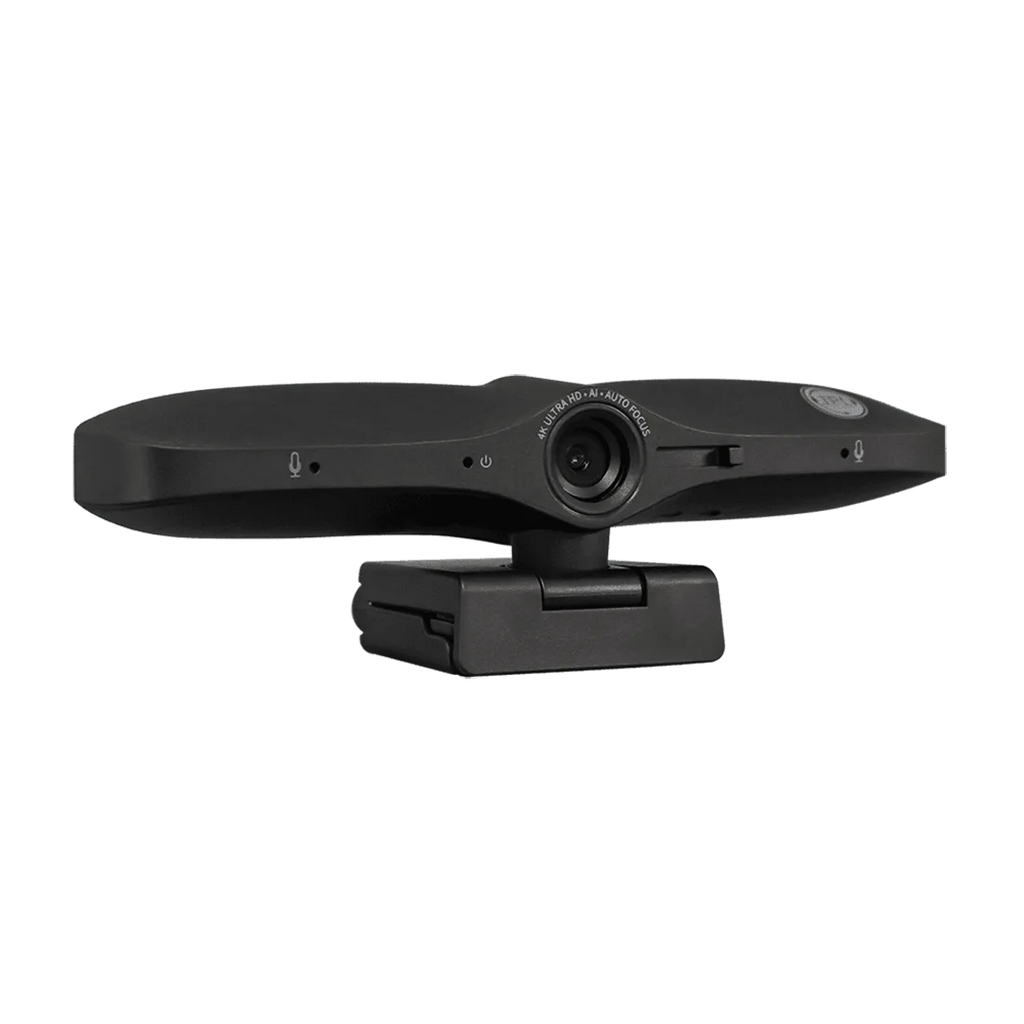

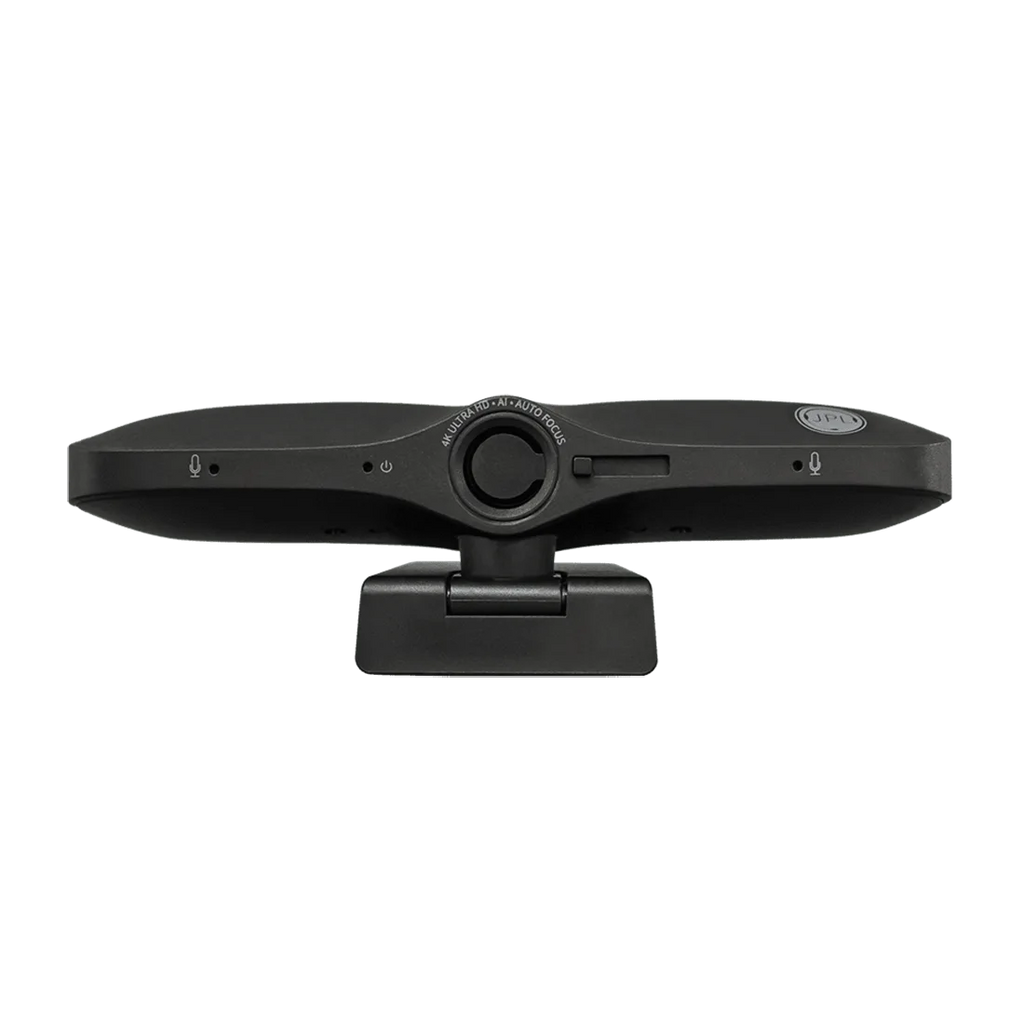

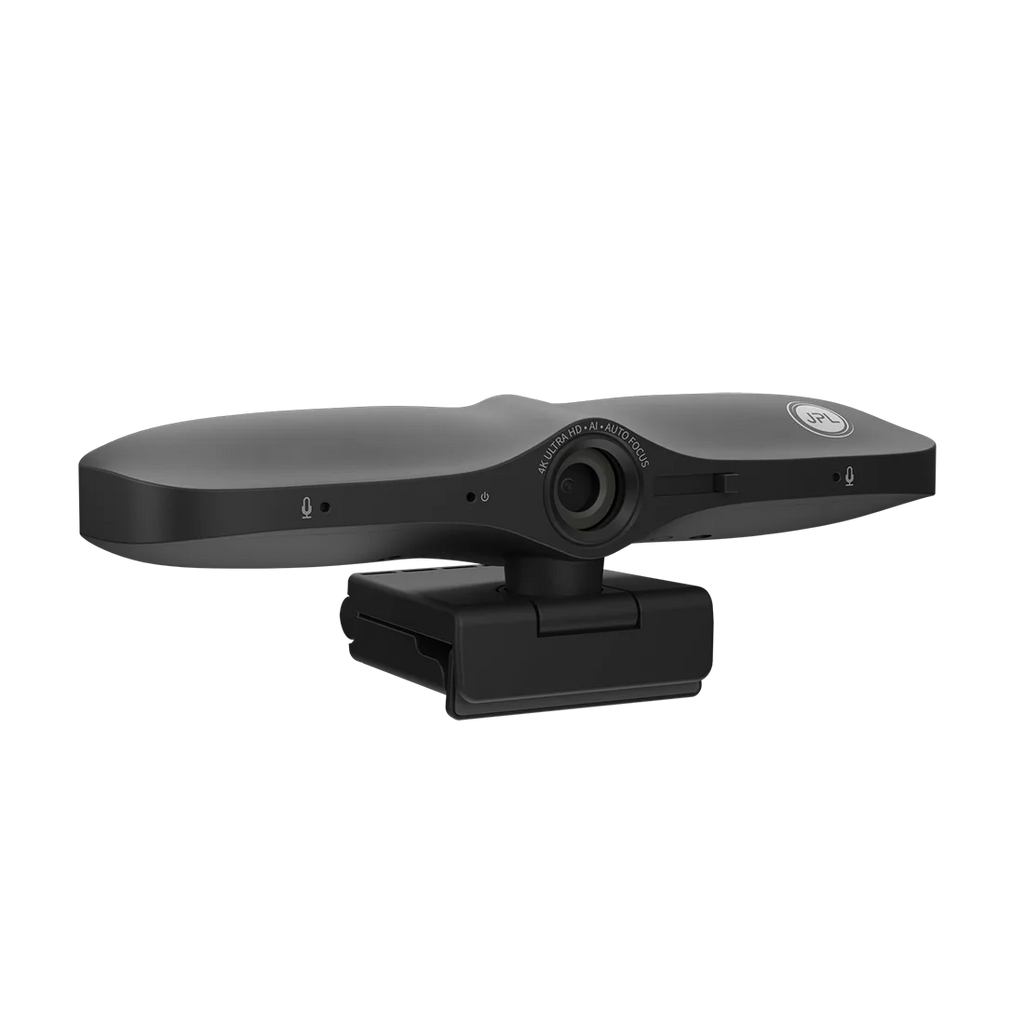

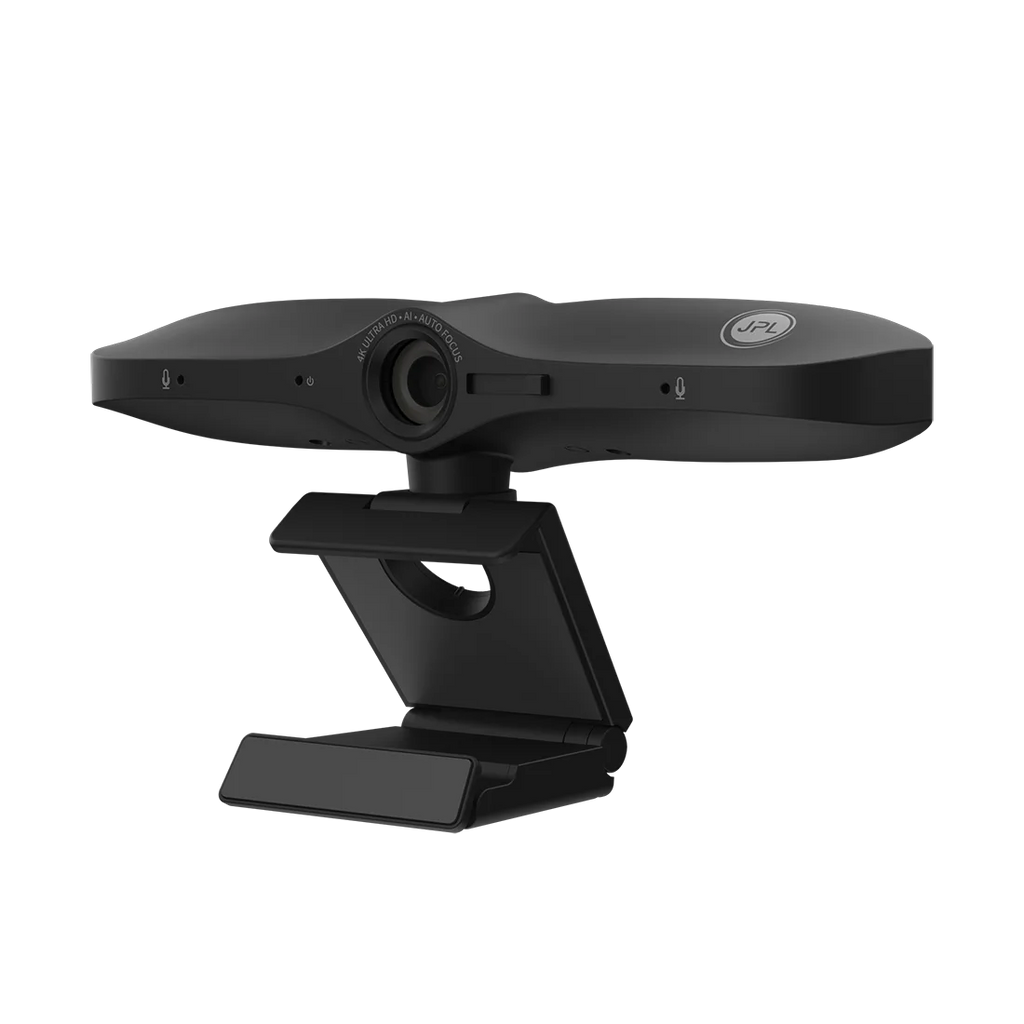

JPL Spitfire Mini Conference Room Video Sound Bar with Intelligent Zoom

Mini Conference Room Video Sound Bar with Intelligent Zoom

The JPL Spitfire is a mini conference room video sound bar designed for seamless, high-quality collaboration in modern workplaces, classrooms, and remote environments. Featuring 4K Ultra HD resolution (3840 x 2160p), intelligent AI-powered zoom, and a 96° field of view, it automatically adjusts to focus on participants in the room, ensuring everyone stays in frame. The Spitfire integrates dual stereo duplex microphones with a 5-meter voice pickup range, providing crystal-clear audio with automatic noise suppression and echo cancellation. Its sleek, plug-and-play design connects via USB-A or USB-C without the need for additional software or power adapters.

The device includes a built-in privacy lens cover, LED camera-in-use indicator, and a universal mount that allows desk, monitor, or tripod setup. With 360° rotation and 90° tilt, it’s ideal for conference calls, live broadcasts, remote teaching, and professional video communication. Certified to UKCA, CE, FCC, and RoHS standards, the JPL Spitfire comes complete with a clam-shell carry case, mini tripod, and wall mount bracket

Ideal for live video broadcast, video conference, home video recording, network teaching

Single USB wire solution - No additional power needed

Plug & play solution - No software or downloads needed

Intelligent zoom, powered by AI - lens moves to focus on the people in the room

Compatible with all computers (Mac / PC) and softphones, and is designed to work straight out of the box

96° field of view - 8 person conference room

Integrated privacy lens cover

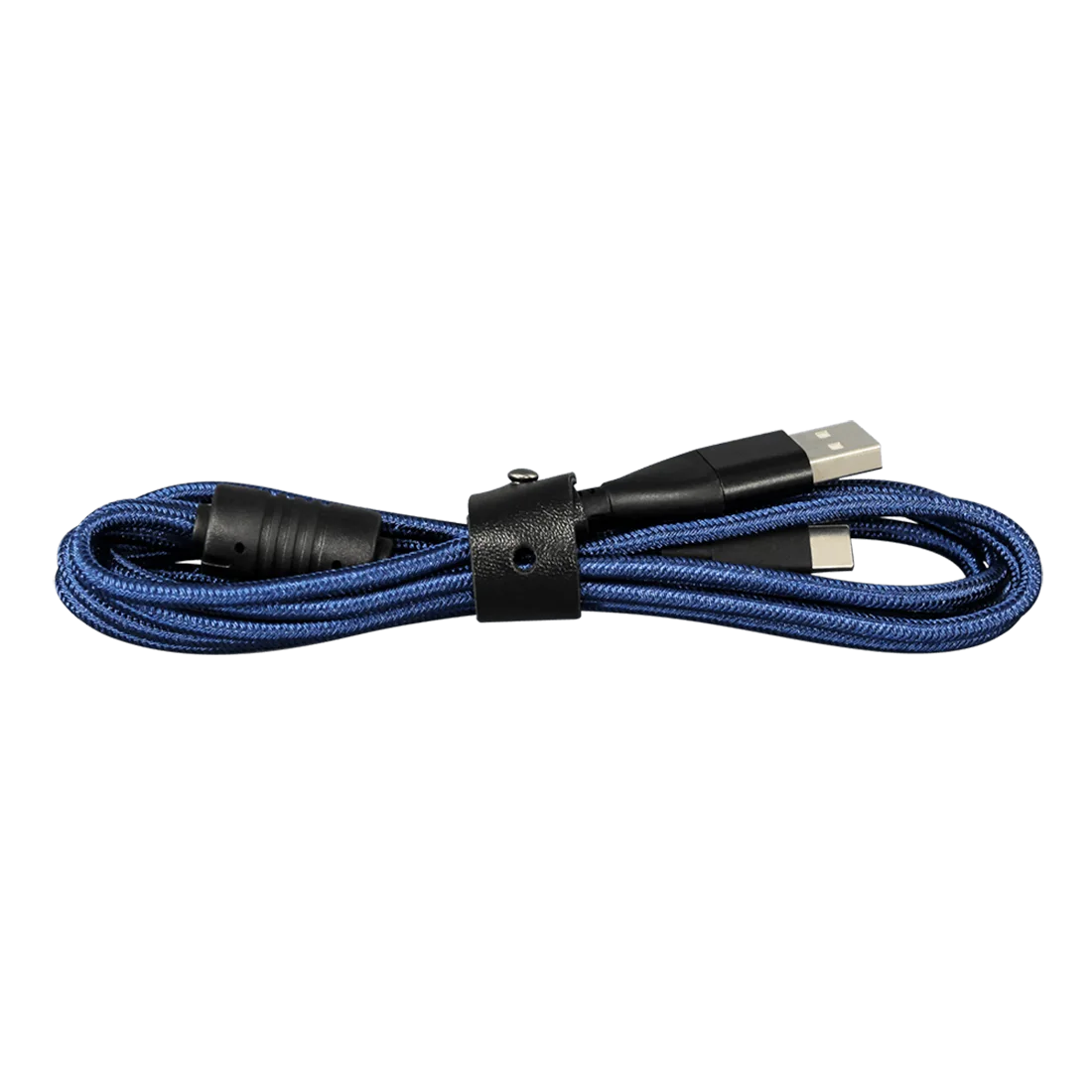

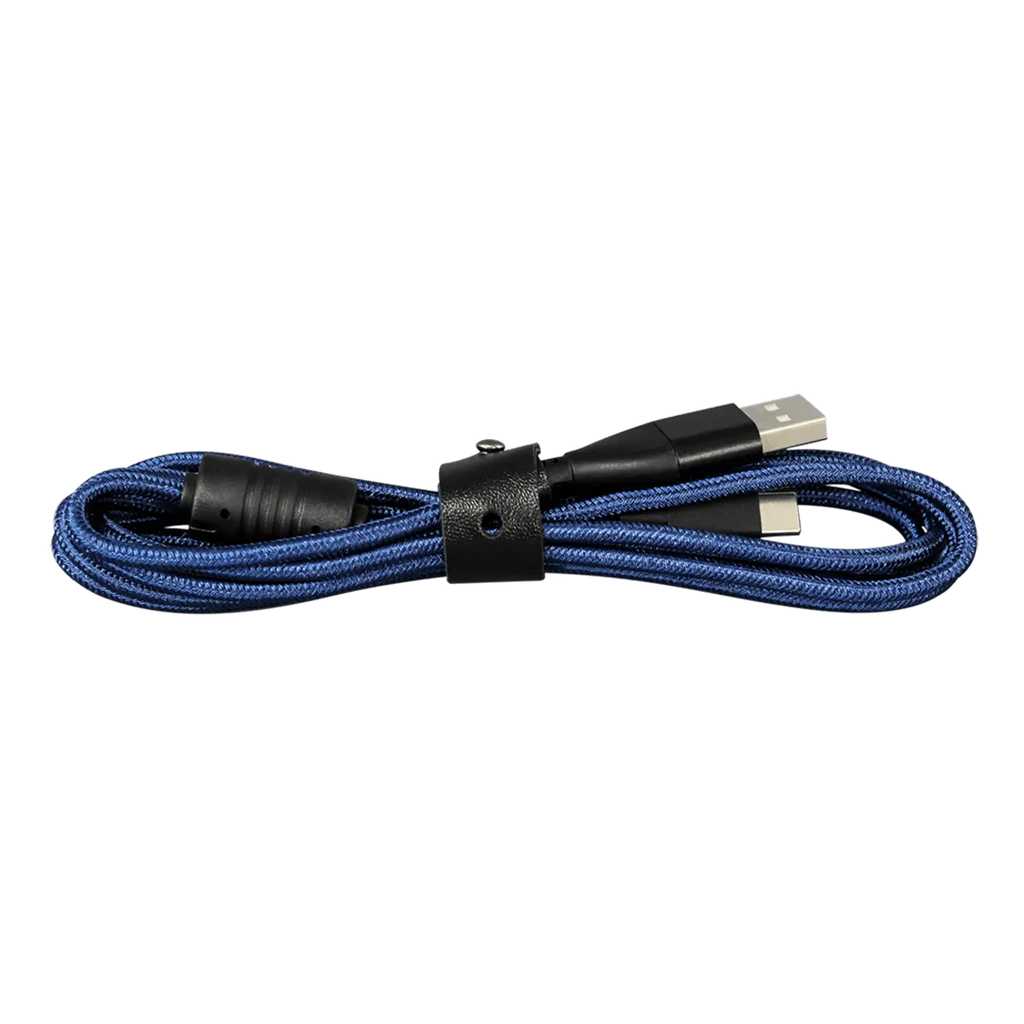

USB Type-A and USB Type-C connectivity using the USB adapter included

Dual duplex microphone, 5m voice pickup

Built-in camera in-use LED indicator

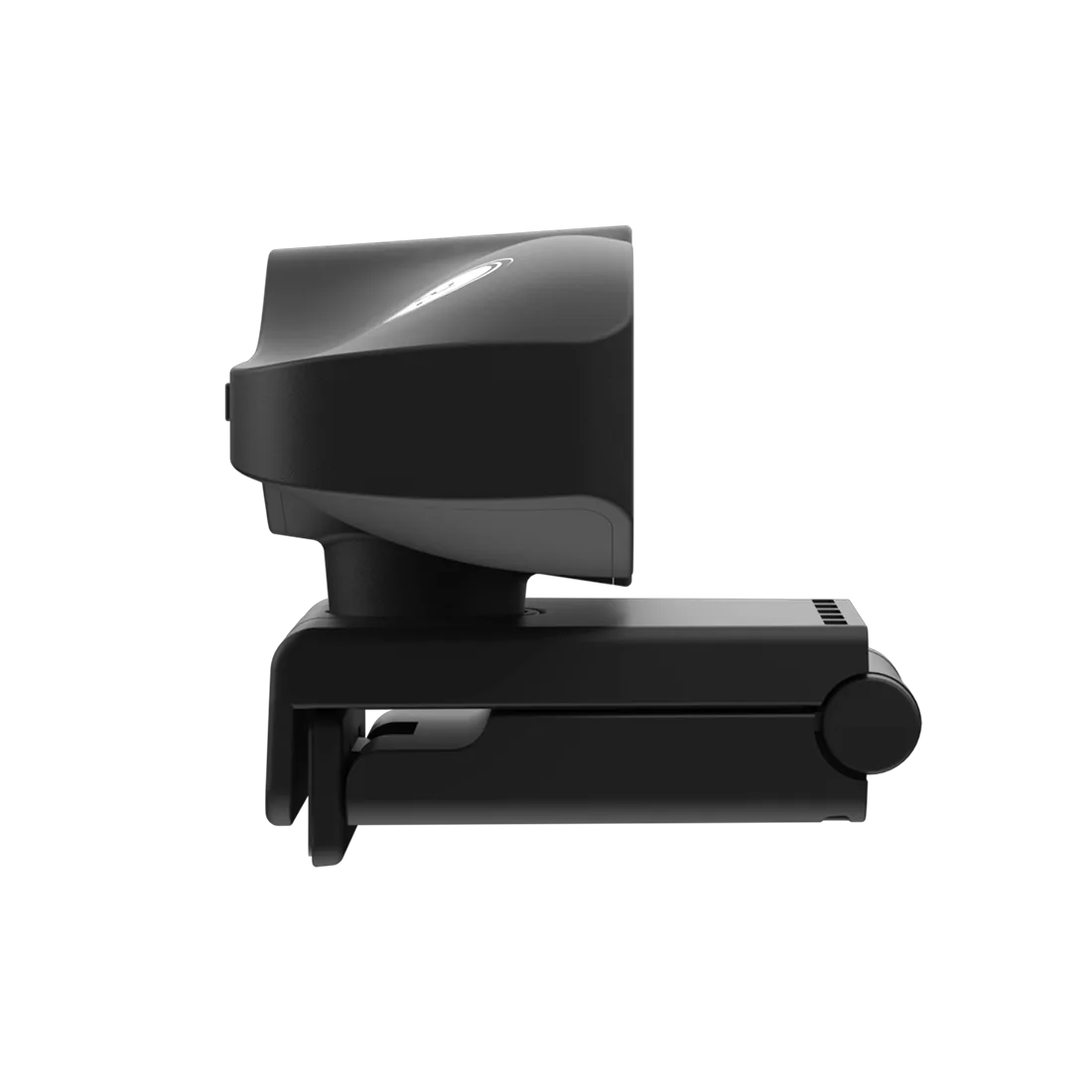

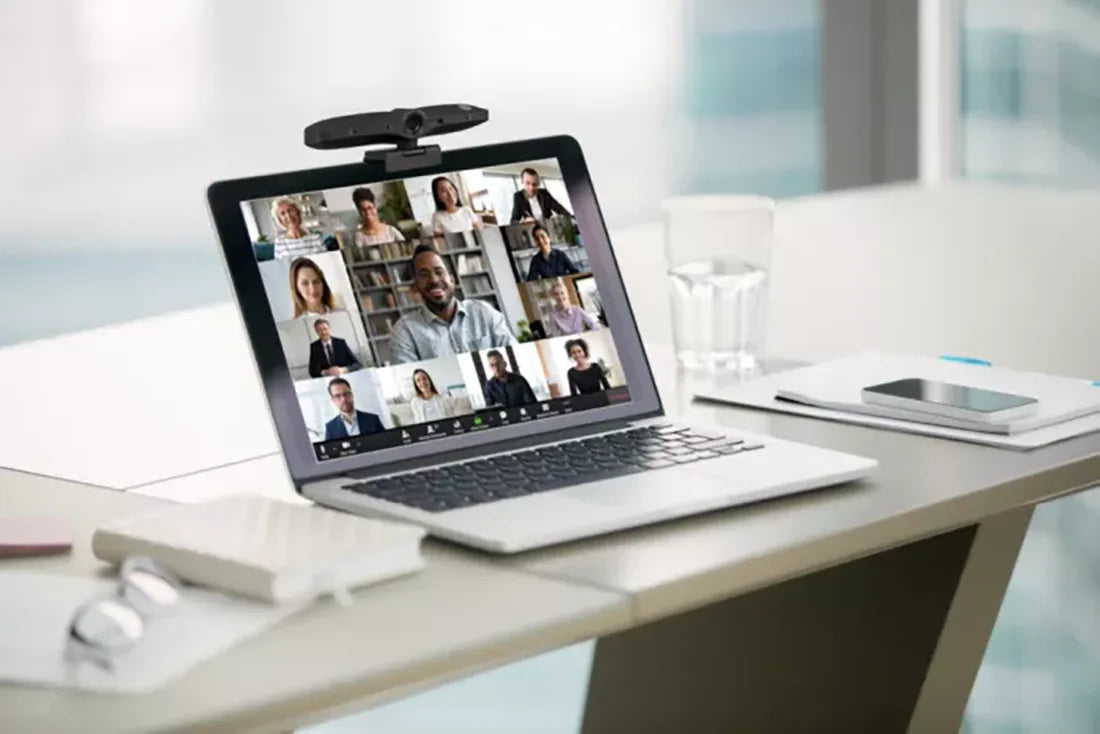

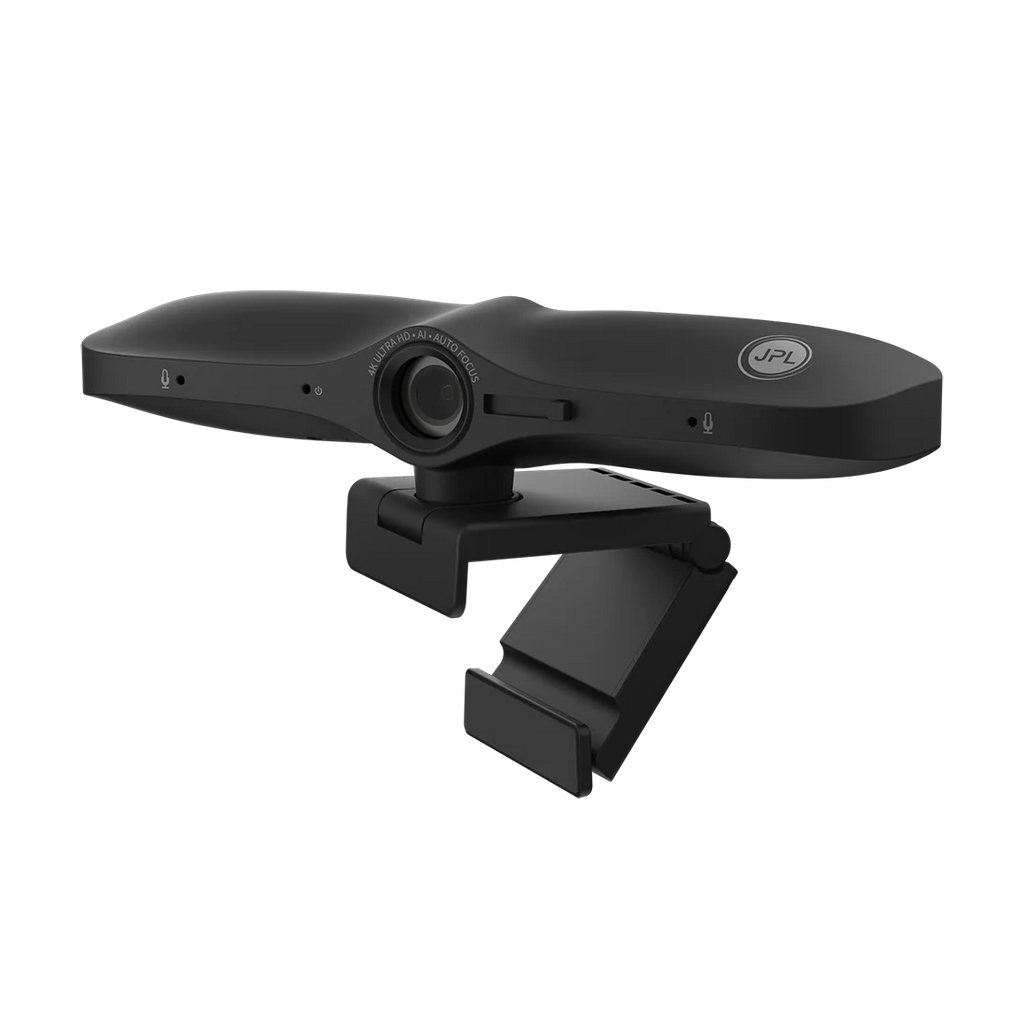

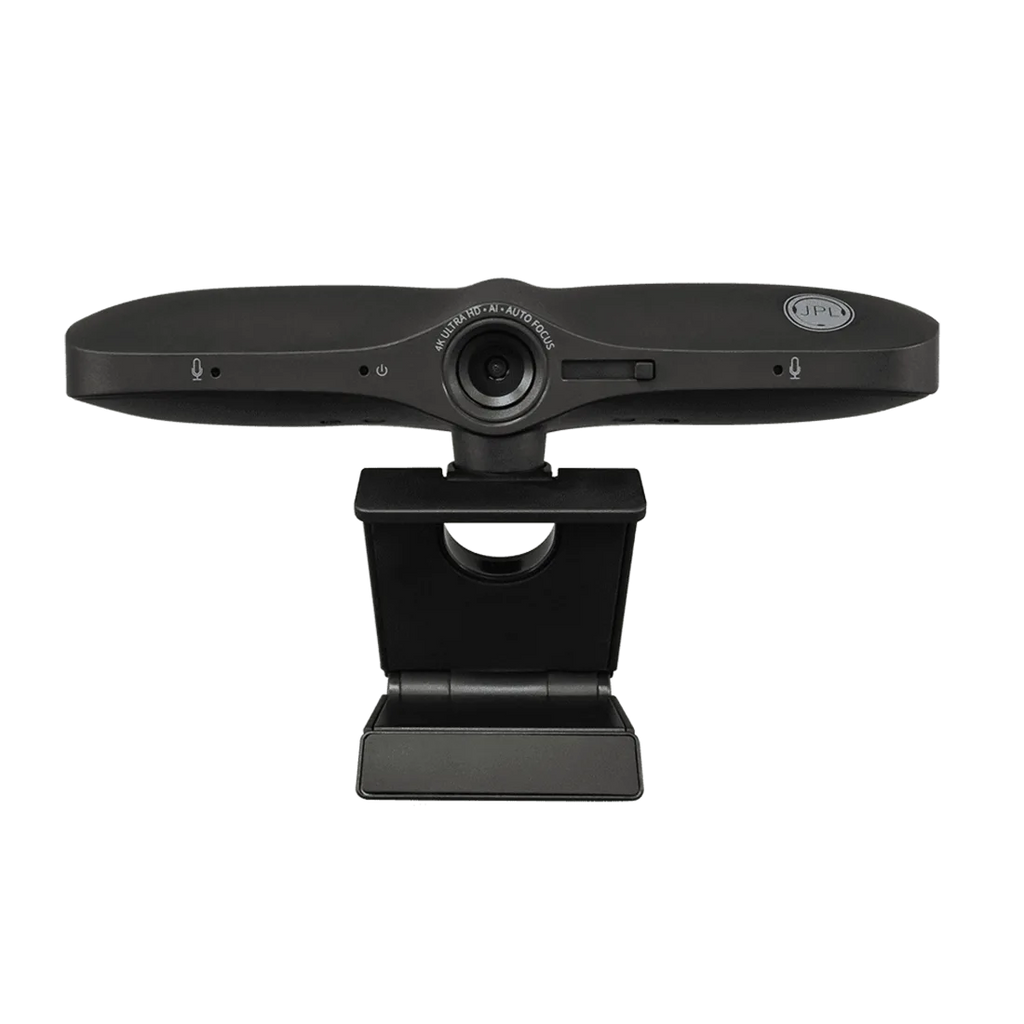

Multi-angled desk mount / monitor mount (as well as tripod fixing thread option on the base) giving full 360° camera rotation and 90° camera forward tilt

3 years limited warranty*

Overview

Features
4K UHD 3840 x 2160p
Integrated privacy lens cover

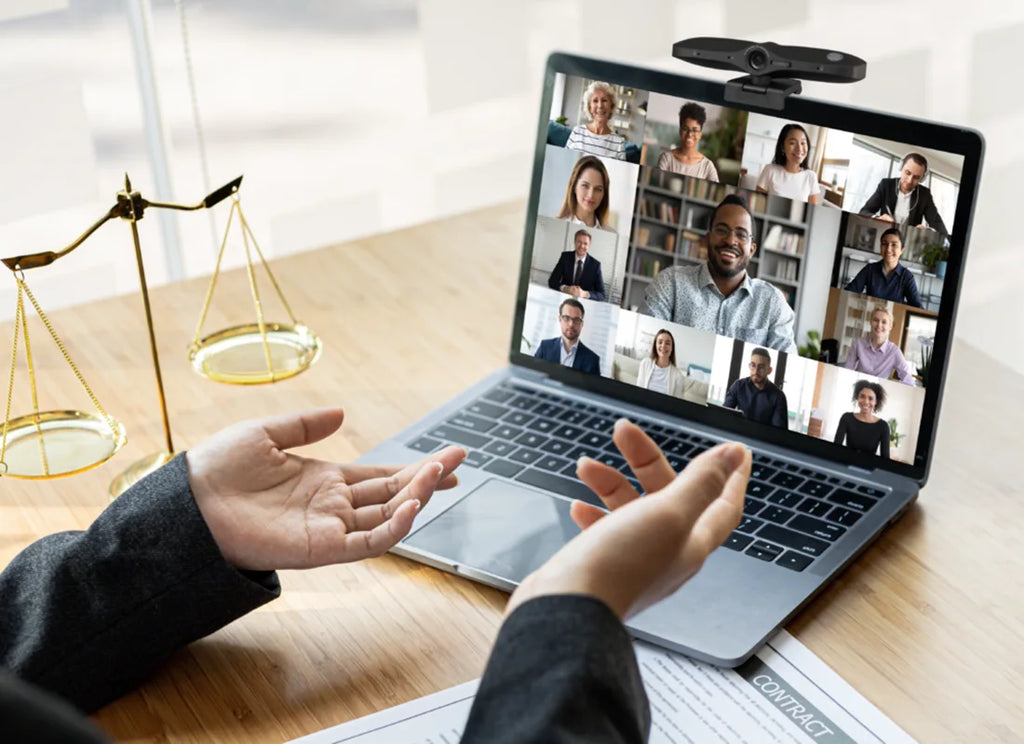

Hybrid work solution for the office, home, school or university
Dual duplex microphone, 5m voice pickup
Built in camera in-use LED indicator
USB 2.0 Type-A connectivity
USB Type-C connectivity with USB-A to USB-C Adapter included
Desk mount, monitor mount or tripod option
Full 360° camera rotation including 90° tilt for over desk viewing
Automatic low-light correction
AEC – Automatic Echo Cancellation
ANS – Automatic Noise Suppression

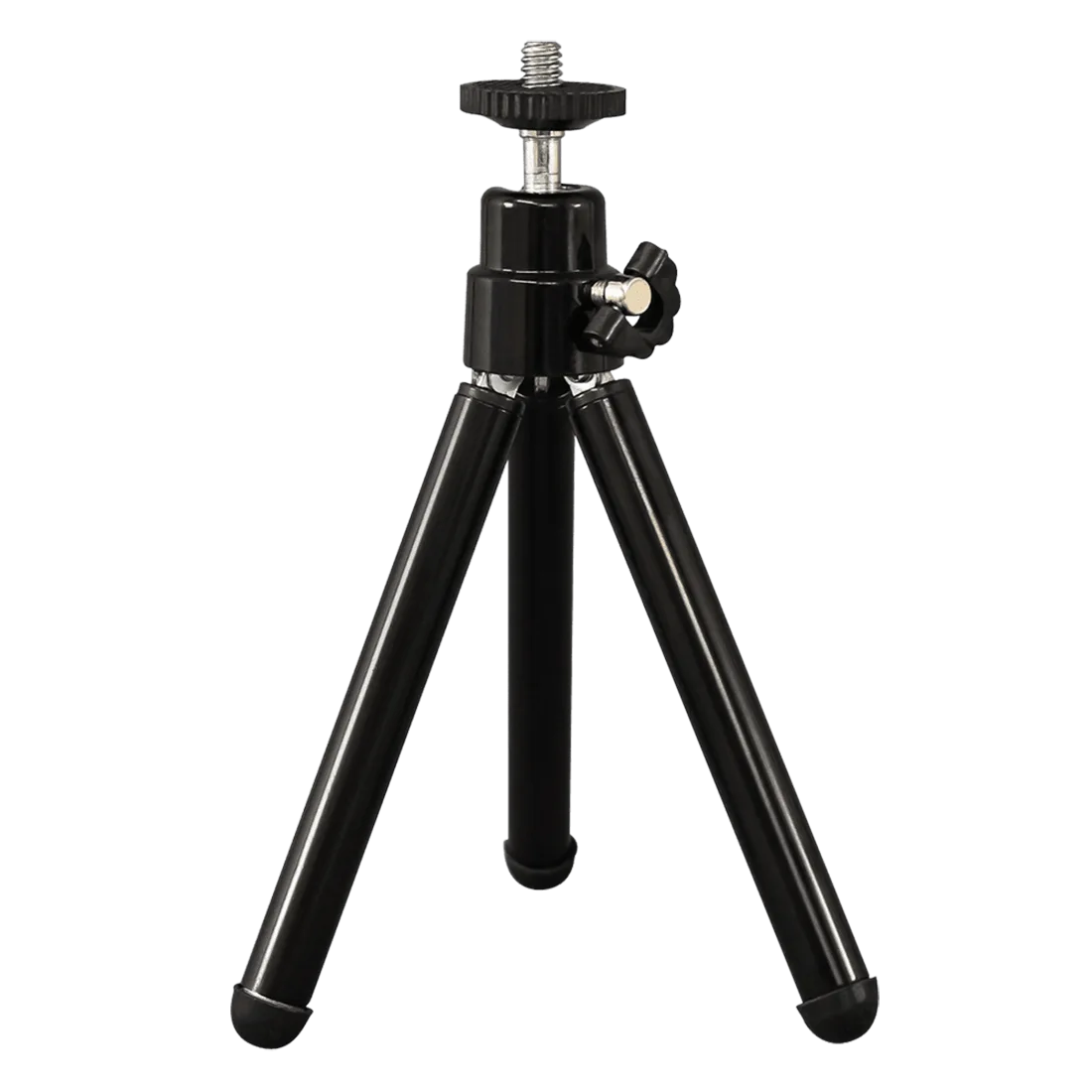

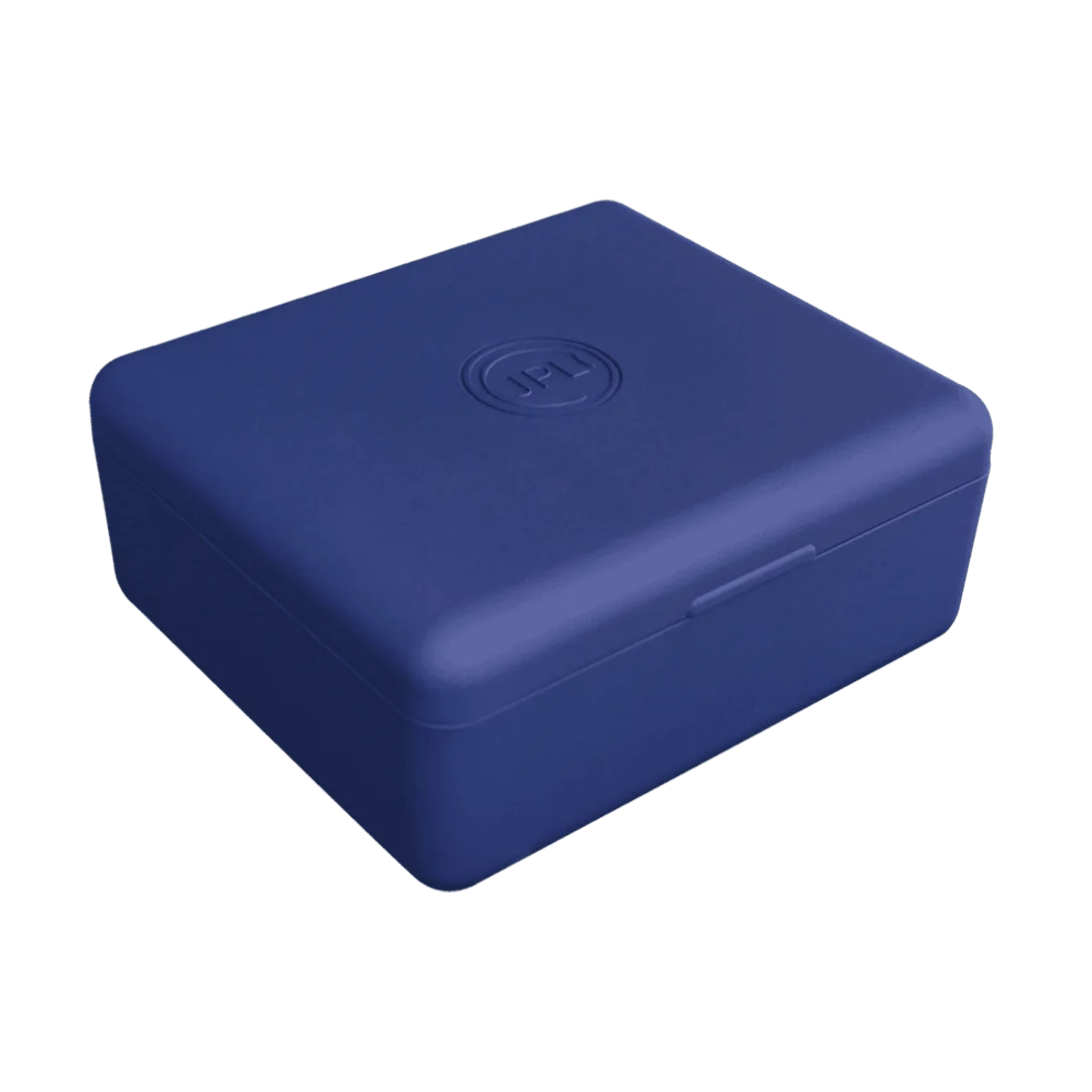

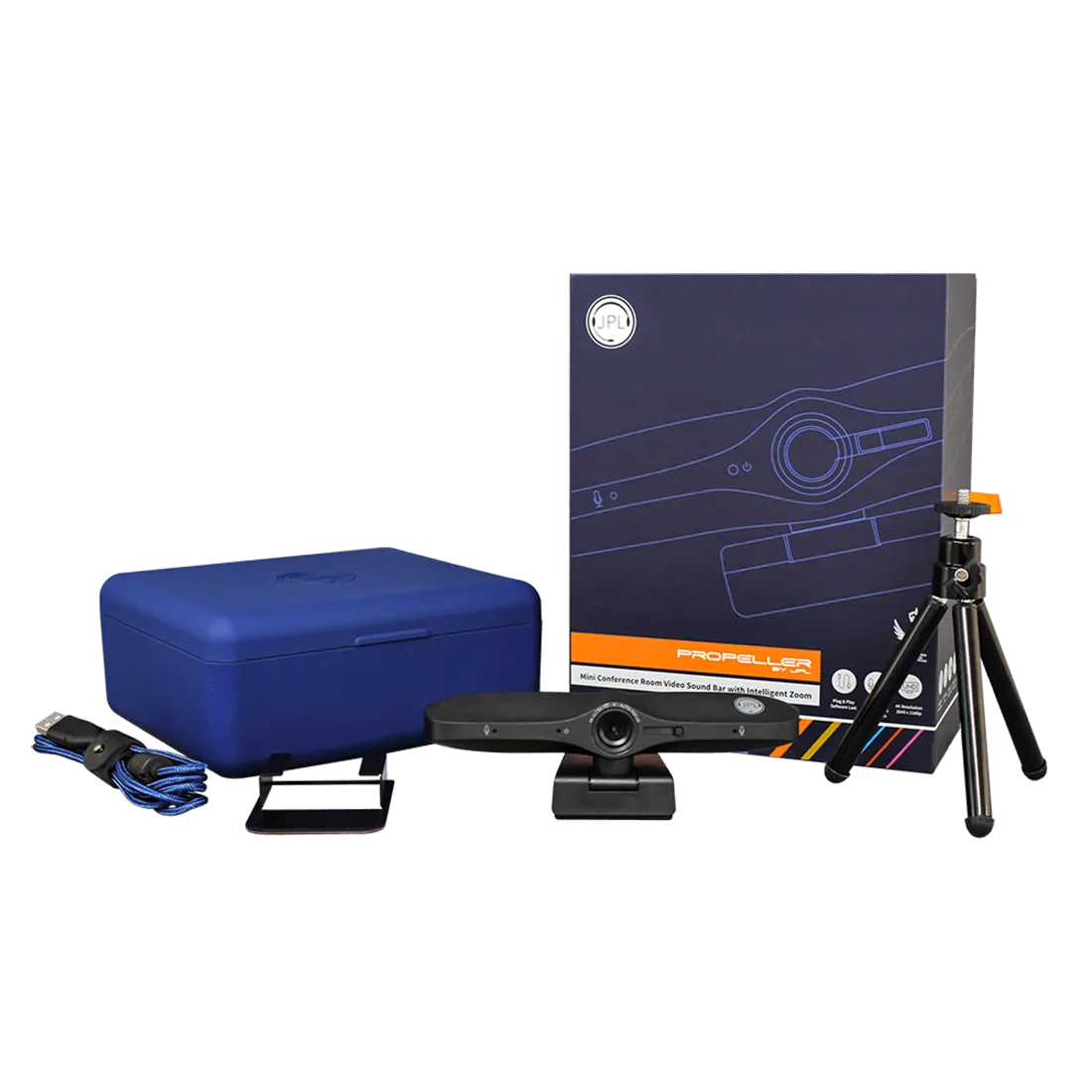

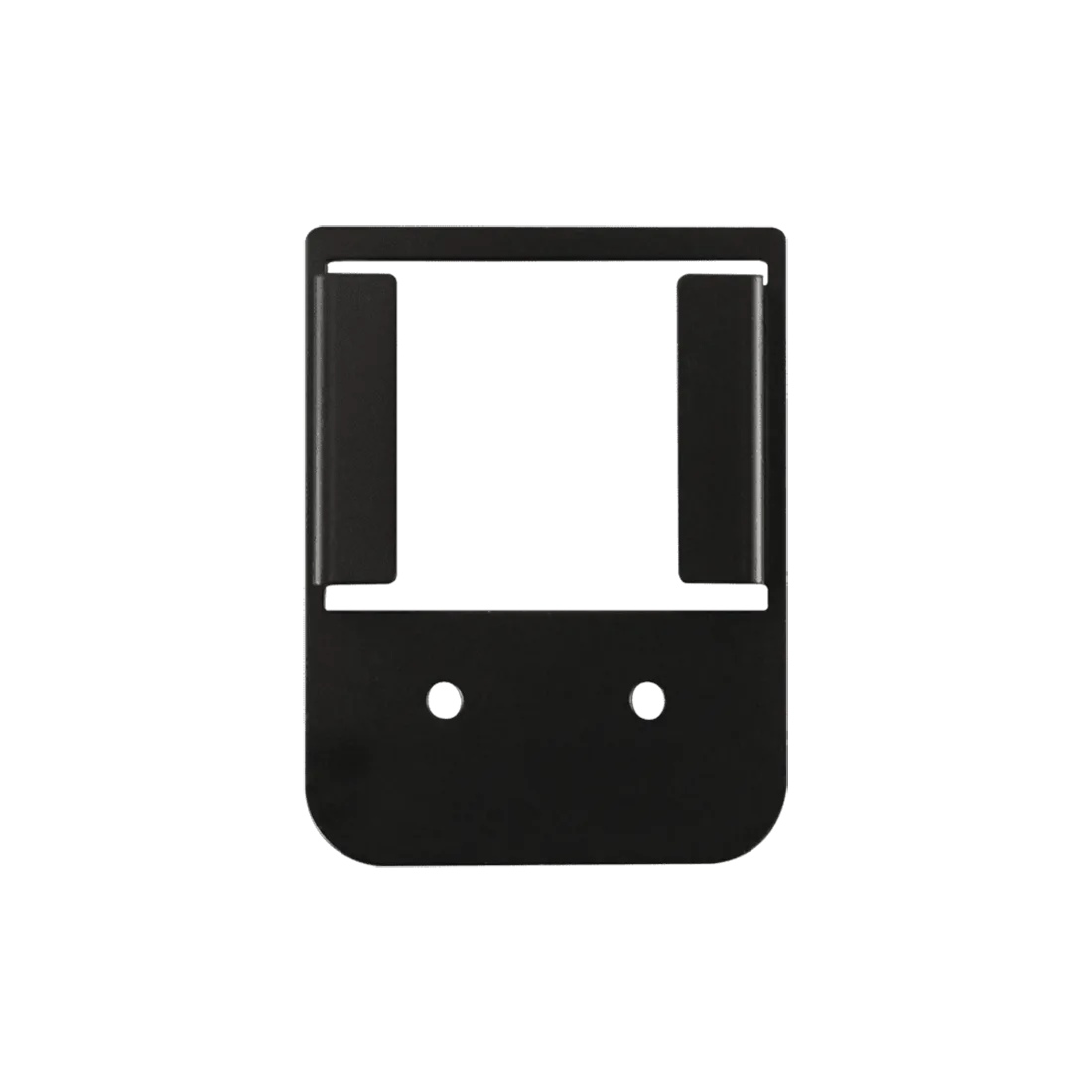

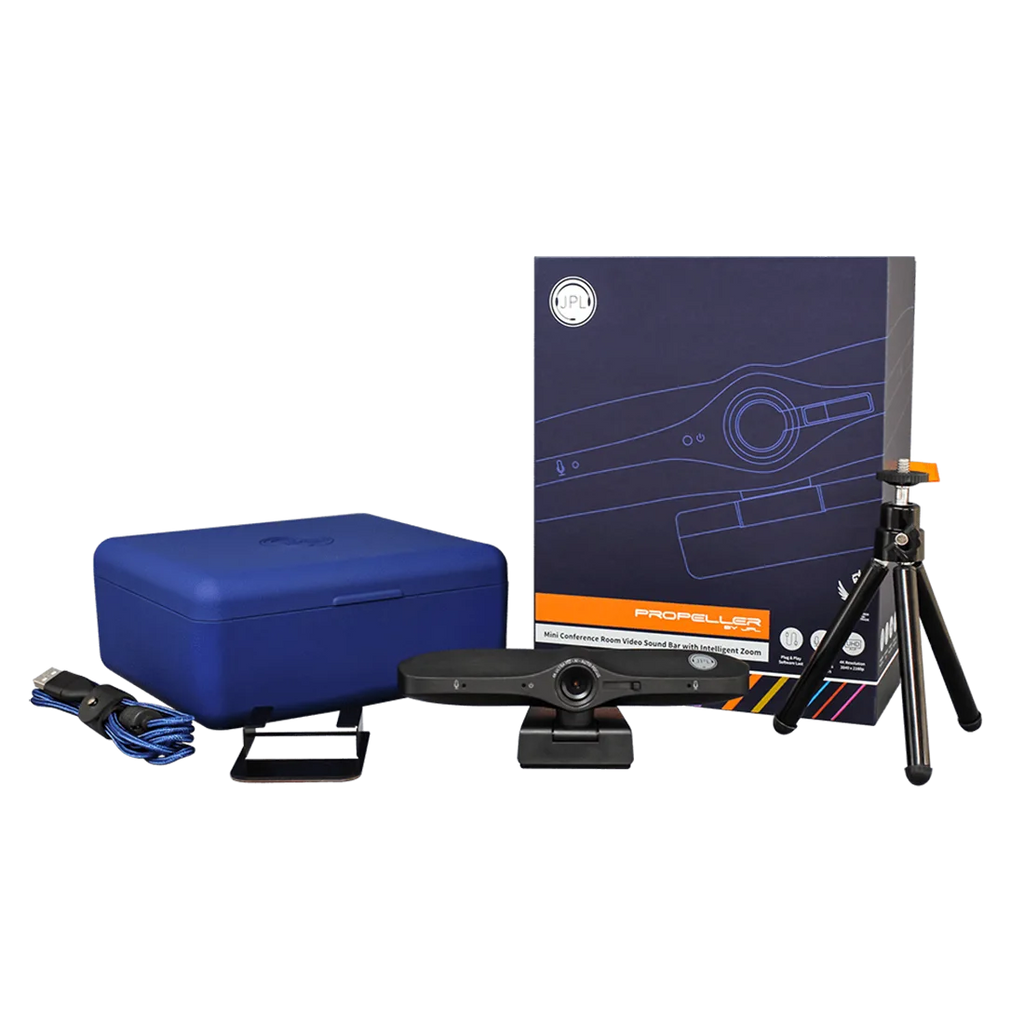

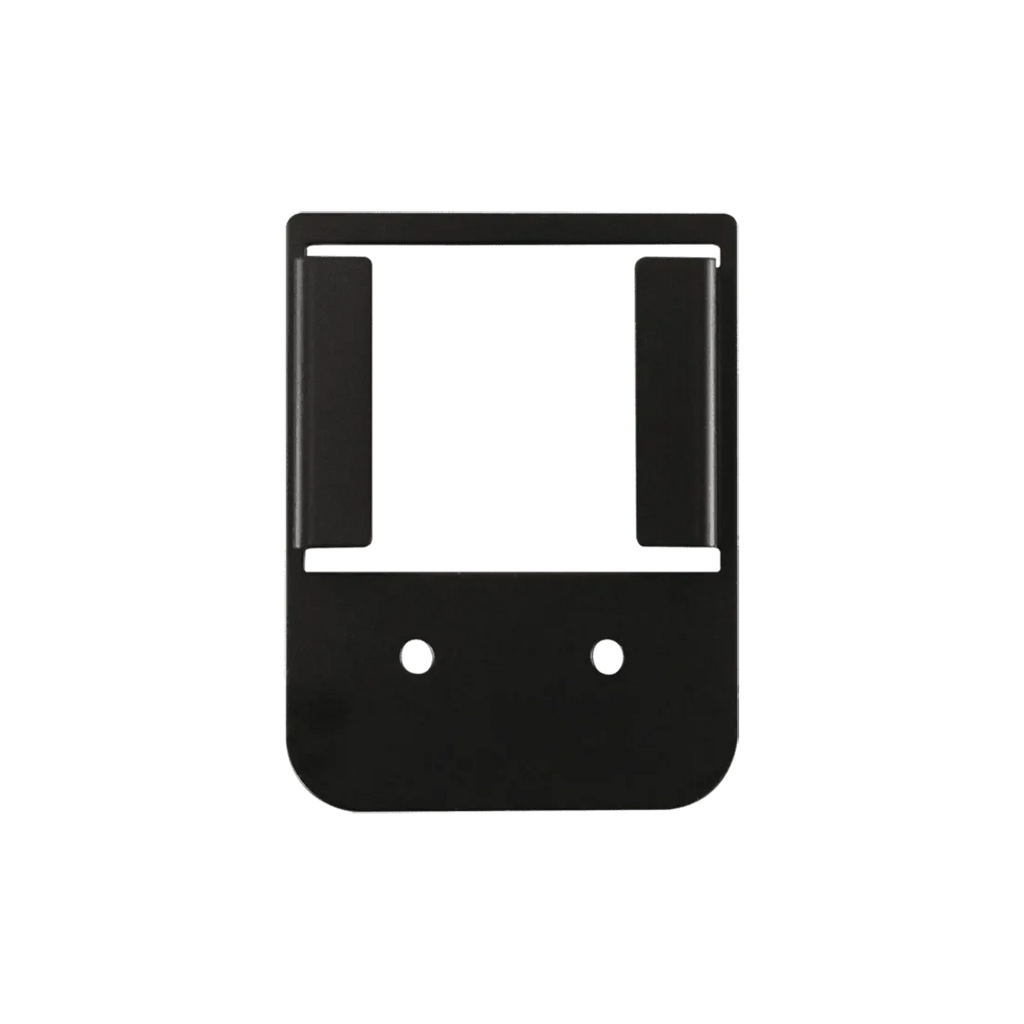

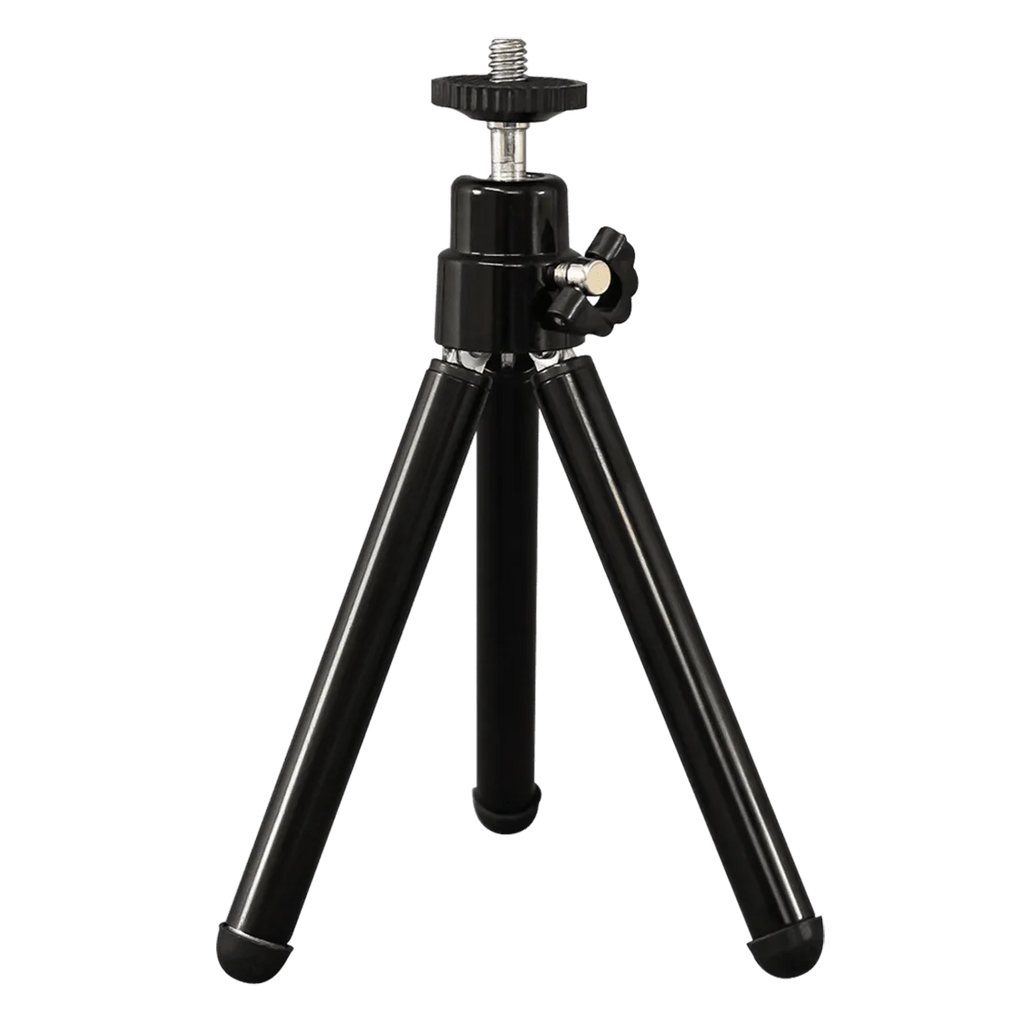

Clam shell style carry case, mini tripod and wall bracket included

Certifications
UKCA, CE, FCC, RoHS, REACH

Dimensions
160mm wide

Warranty
3 years limited warranty (2 years standard repair or replacement warranty plus a 3rd year cover on the camera only)

MOQ
Master Shipping Carton: 20

SKU
575-350-001

EAN
5060126958901

Technical Data

Camera parameters:
Total Pixels: 8.3 million pixels - 4K resolution
Lens size: M12XP0.5
Aperture: F/No. =2.5 ±5%
Image height: ø 5.4
Maximum effective pixel: 3840 x 2160
Output image format: MJPG and YUY2
Field of view: D=96° H=87° V=56° ± 3°
AI Zoom: 5x AI Zoom
Minimum Illumination: 0.5 Lux at F2.0
Exposure: Automatic Exposure (AE)
White Balance: Auto White Balance (AWB)
Dynamic Black Level Calibration (ABLC)
Resolution @30fps: 3840x2160, 2920x1080, 1280x720, 640x480

Microphone parameters:
SNR ≥60dB
Sensitivity: -38±3dB (2.0V 2.2KΩ)
Far-field distance: 5 metres voice pickup
Horizontal voice pickup: Omnidirectional
Communication mode: USB
AIC Automatic: gain control, noise reduction control and echo noise reduction control

Speaker parameters:
Sampling rate: 48kHz
Speaker power: 1W x 2pcs
Directivity: Omnidirectional
Rated impedance: 8Ω ± 5%

Other parameters:
Interface type: USB 2.0 Type-A or USB Type-C
Voltage: DC 5V / 1000mA
OS Support: Win 2000/XP/Vista/Win 7/Win 8/Win 10, Win CE with UVC, Linux with UVC (above Linux - 2.6.26), Mac OS X 10.4.8 or later, Android 4.0 with UVC
Size (camera / gift box): camera (160 x 52 x 48mm) / (224 x 177 x 84mm)
Weight (camera / gift box): TBA

4K Ultra HD 3840 x 2160p Video
Dual stereo duplexed microphones for smooth natural conversations

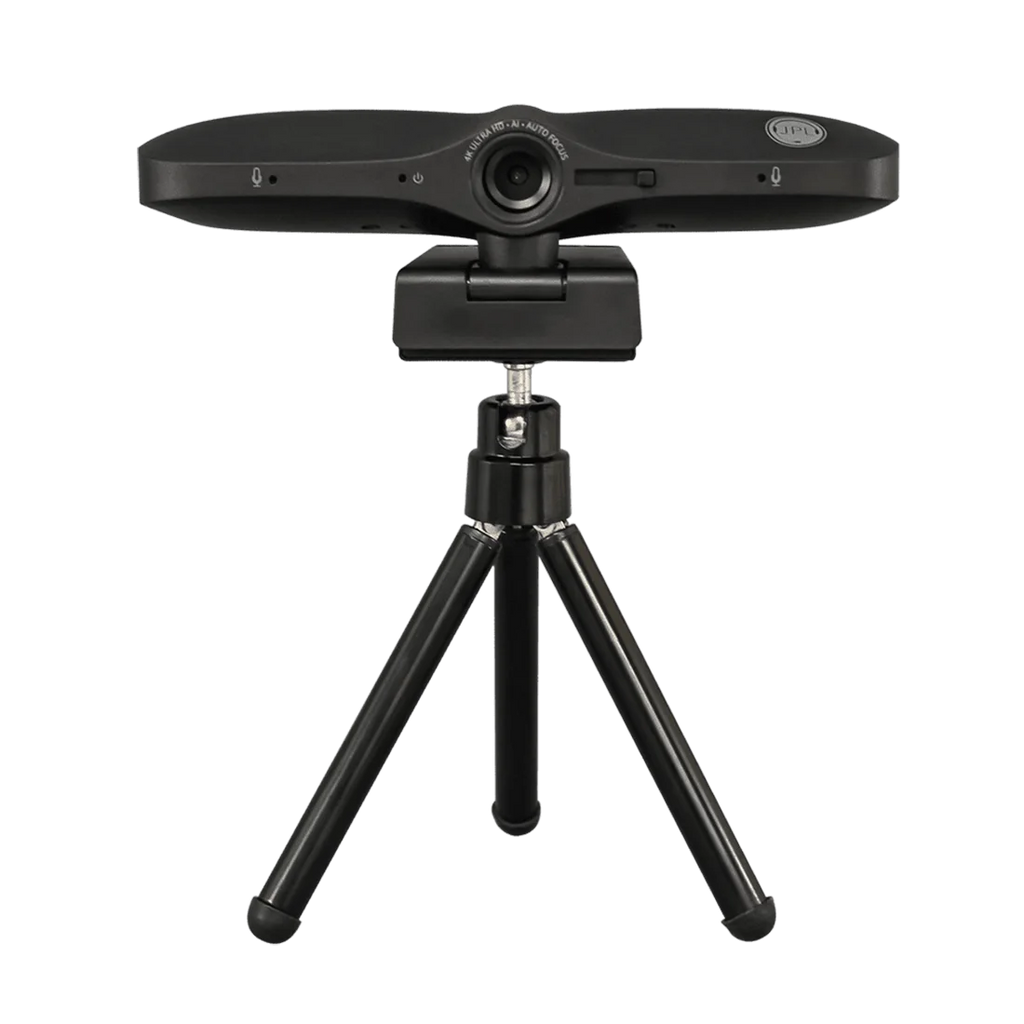

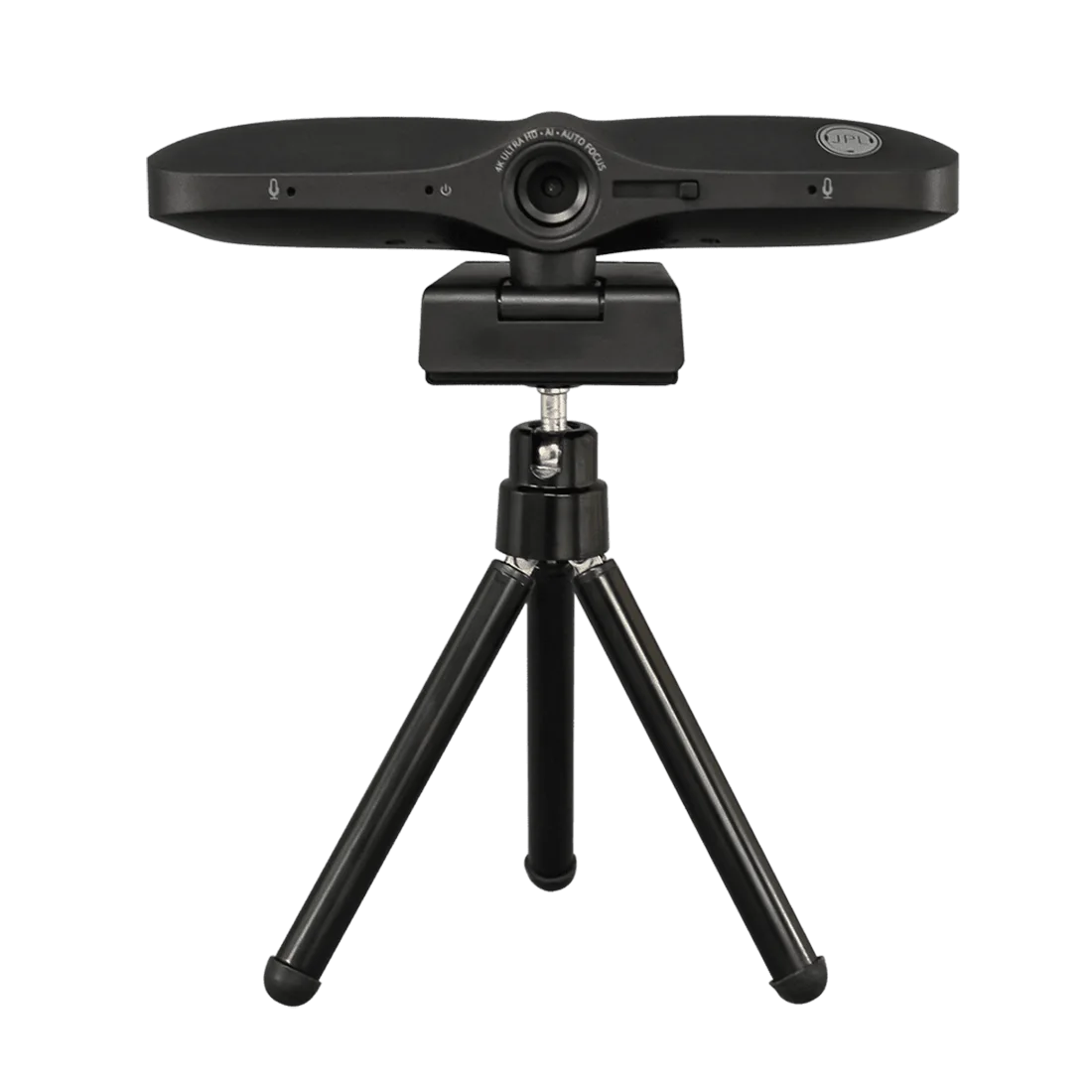

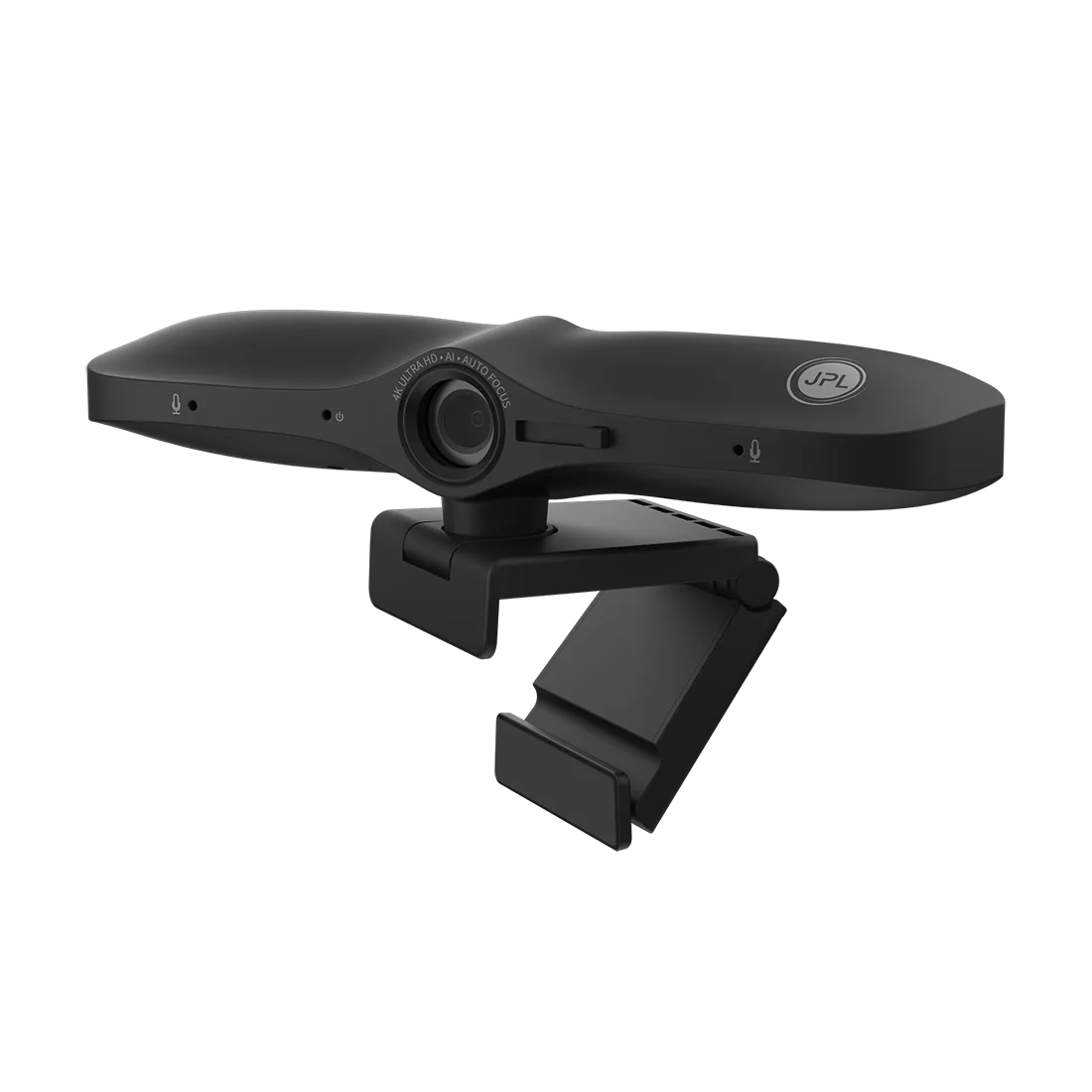

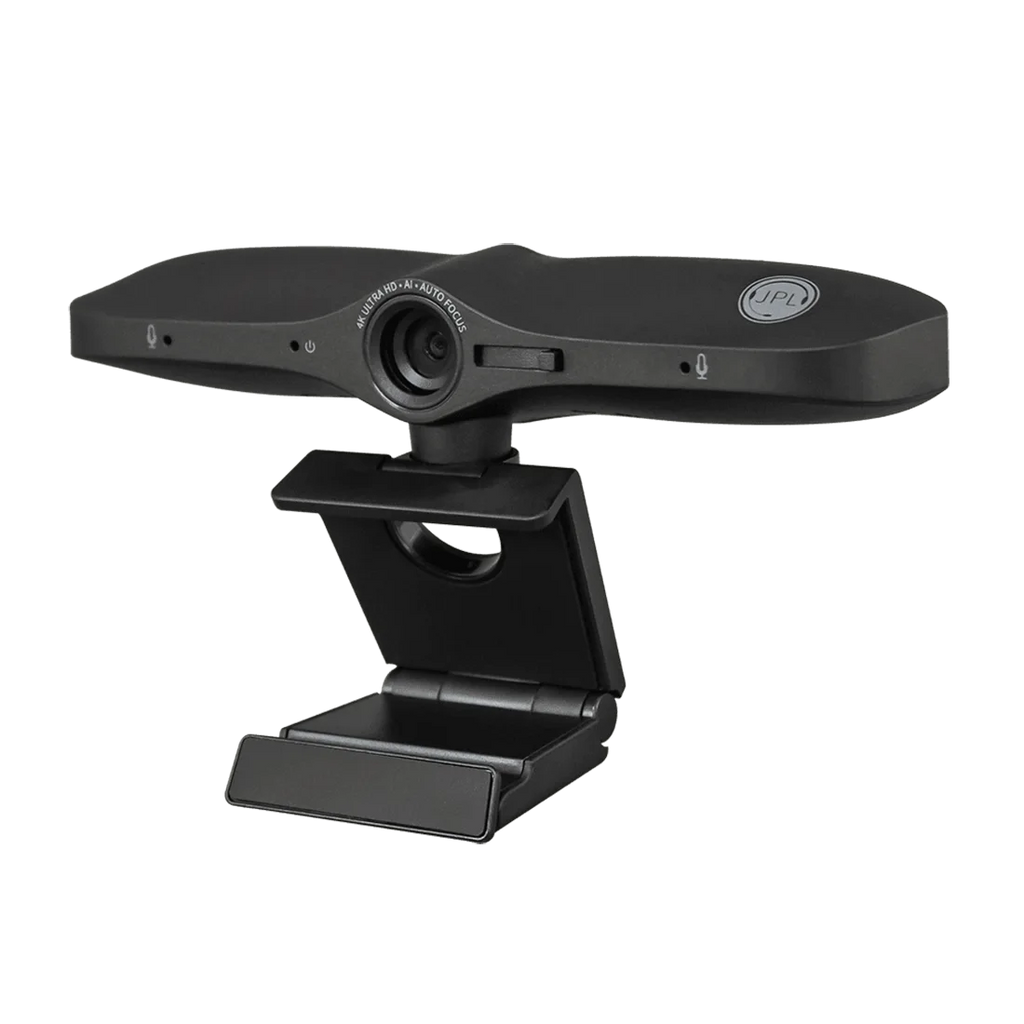

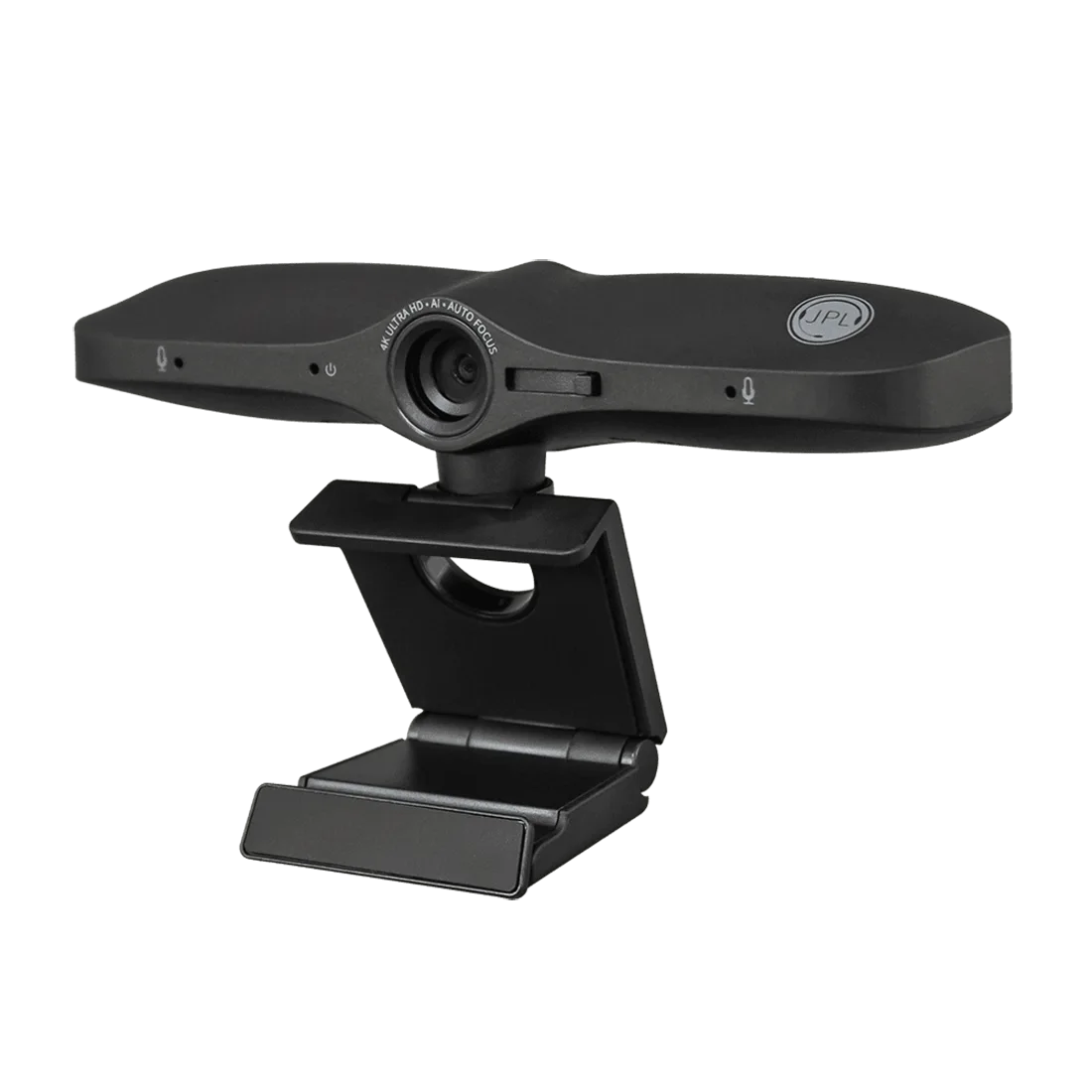

Universal bracket (desk mount, monitor mount and tripod fixing thread for optional tripod attachment)
Built-in camera in-use LED indicator

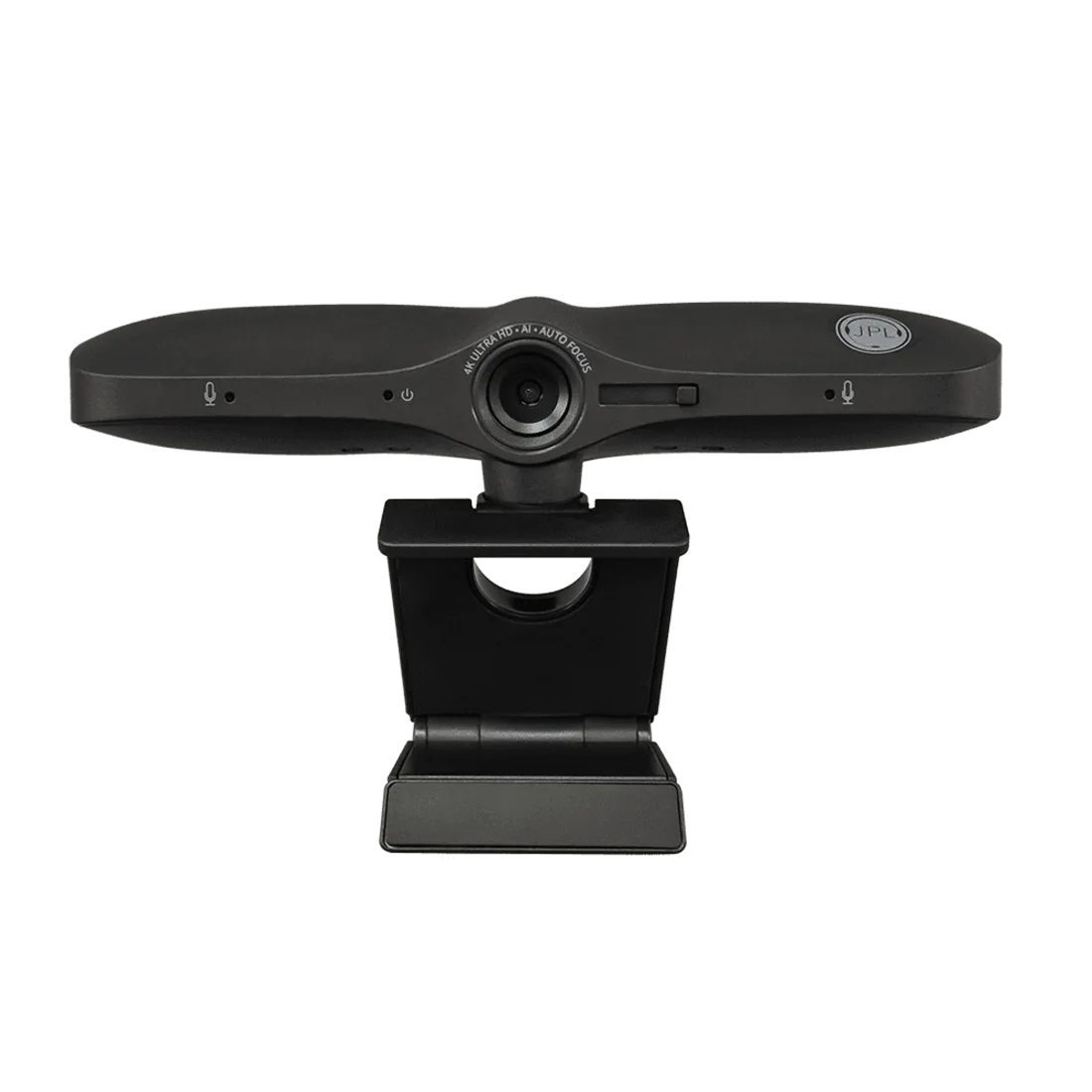

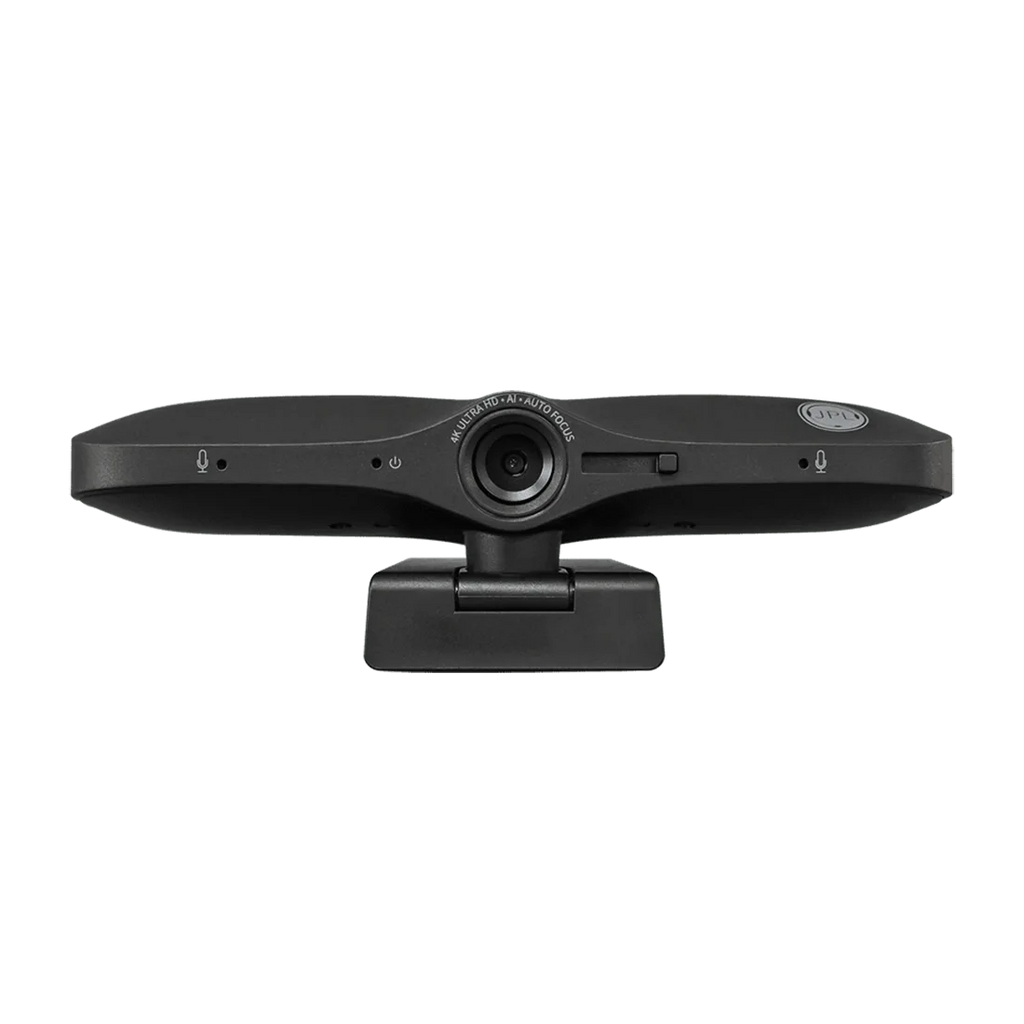

The JPL Spitfire Mini Conference Room Video Sound Bar comes with a full HD glass lens, integrated privacy lens shutter and a USB-A to USB-C adapter to allow optional connection to any USB-C device.

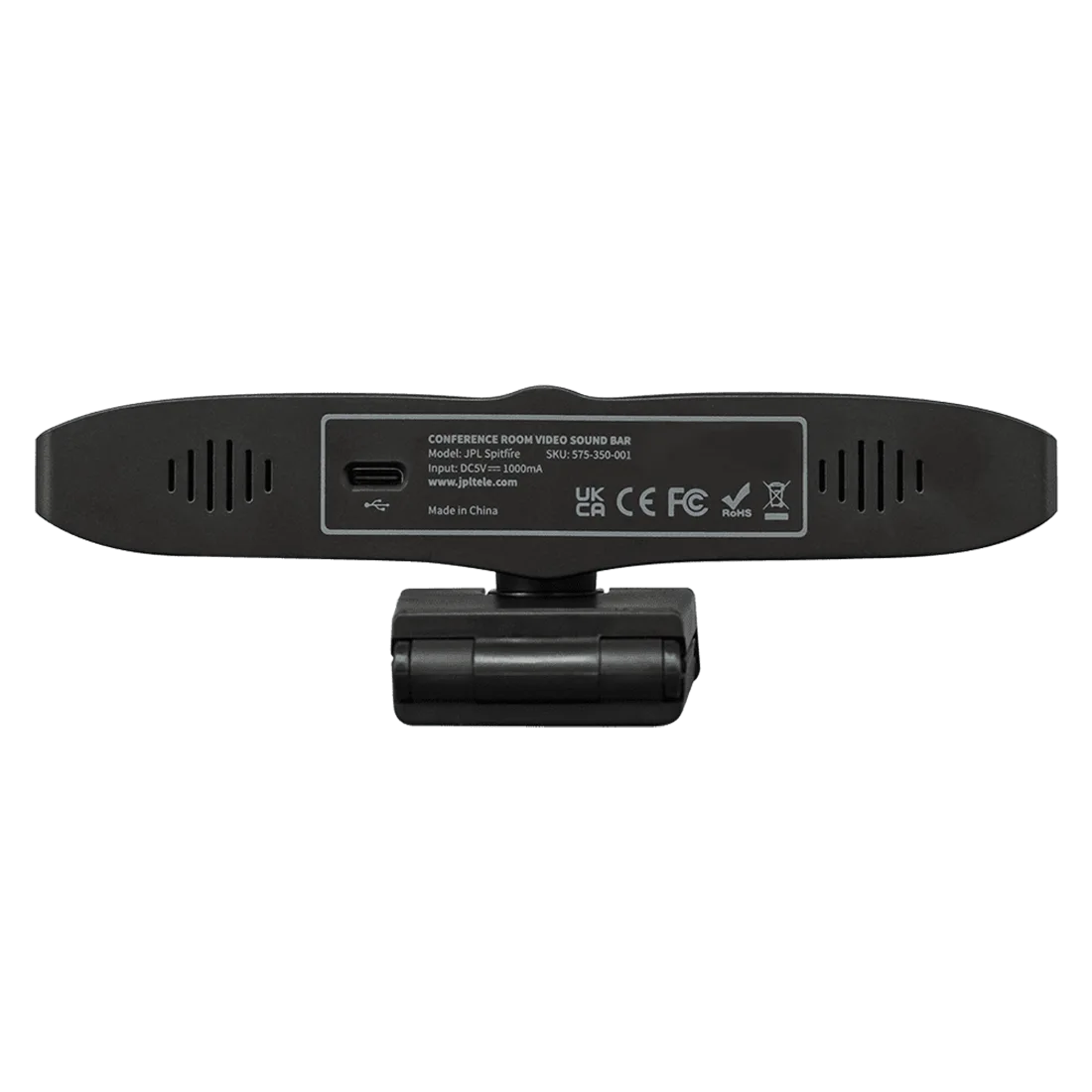

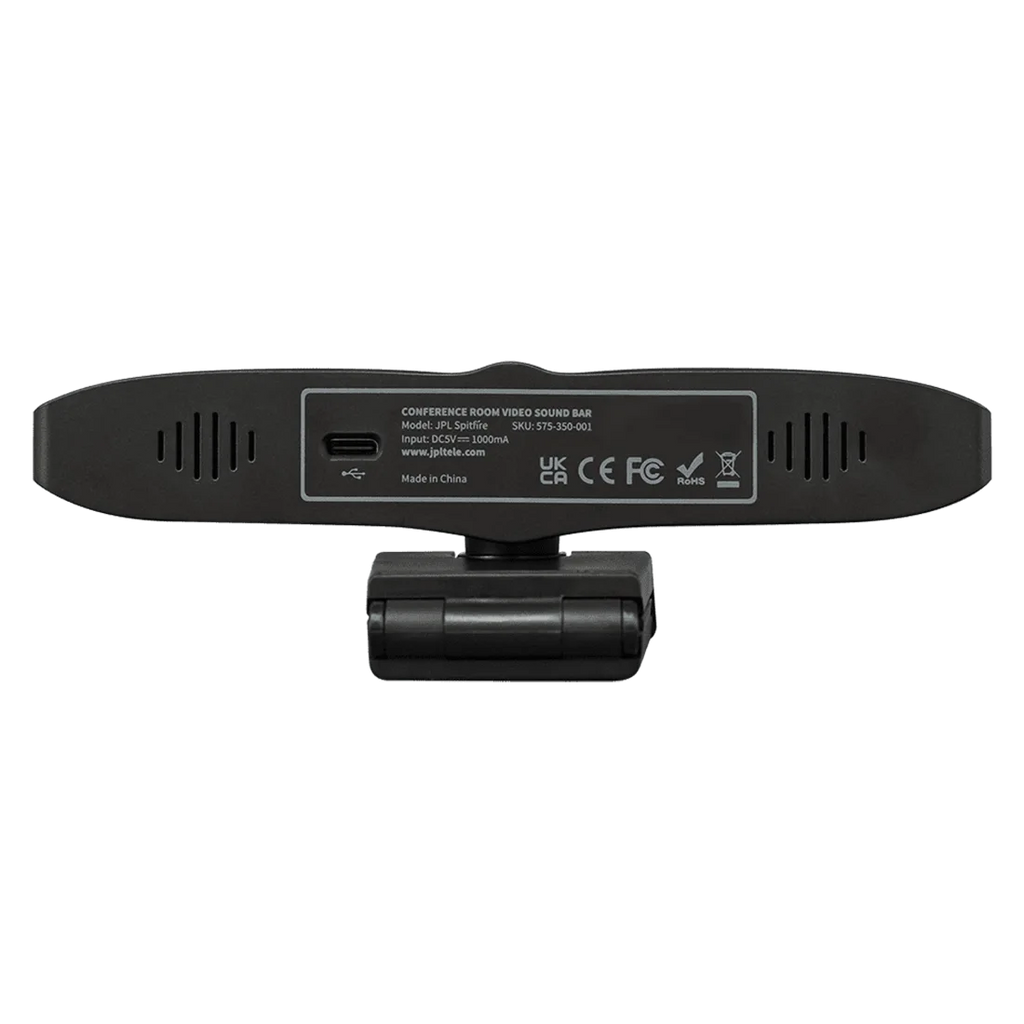

USB-C to back of camera

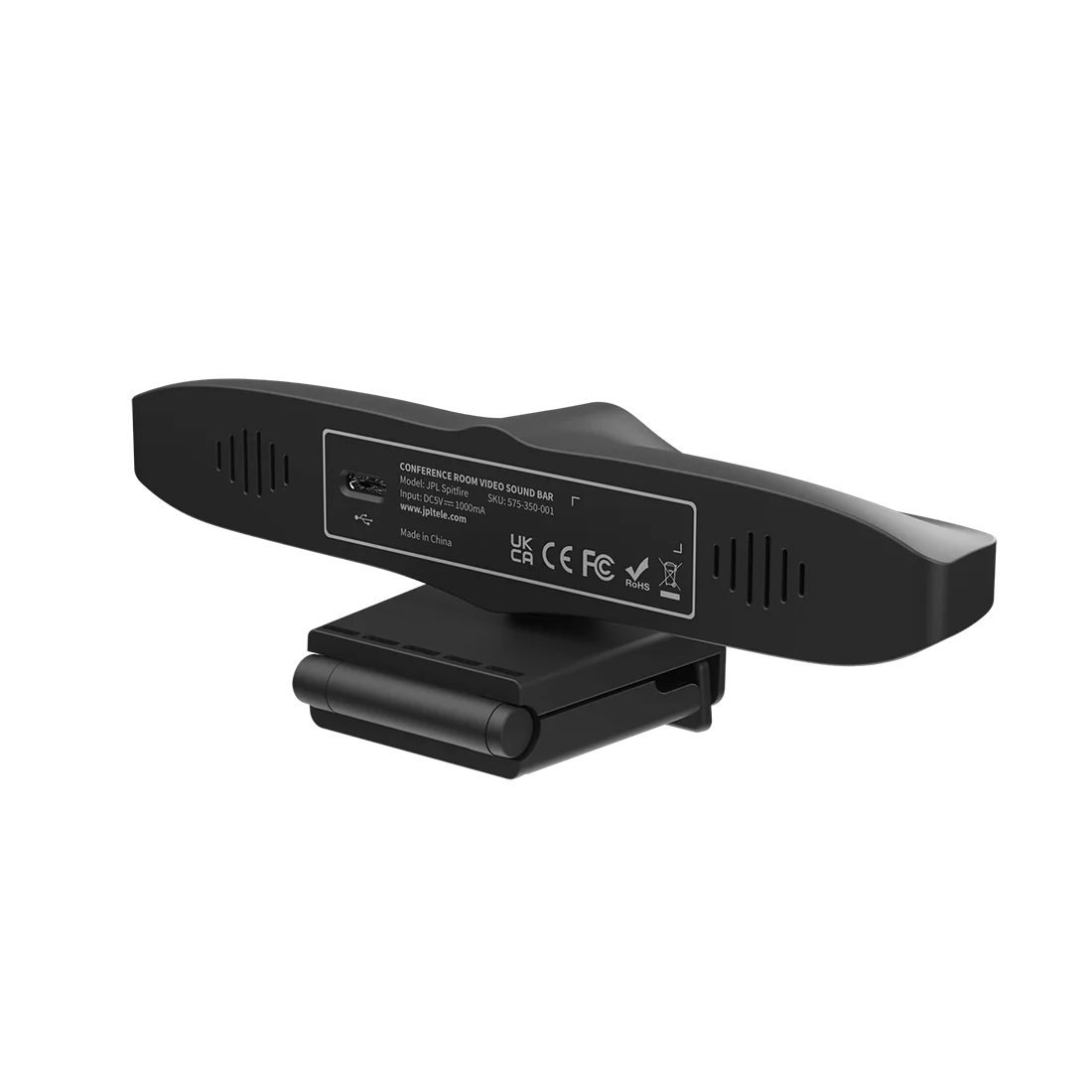

2 speakers at the rear of the camera
Touch sensitive AI intelligent zoom on/off button

Optimised to work with:
Microsoft Teams, Zoom, Google Meet, Skype, Webex, and more
