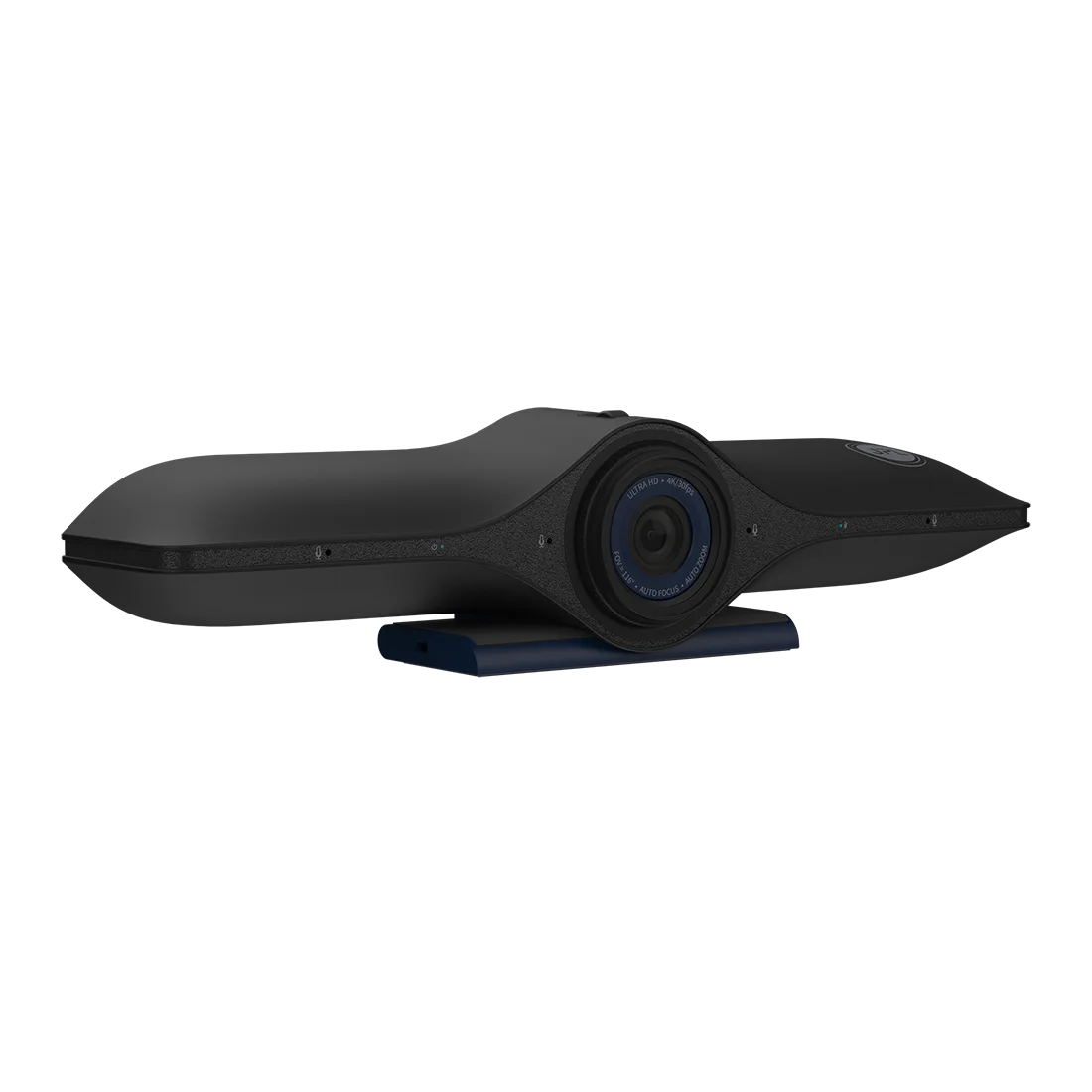

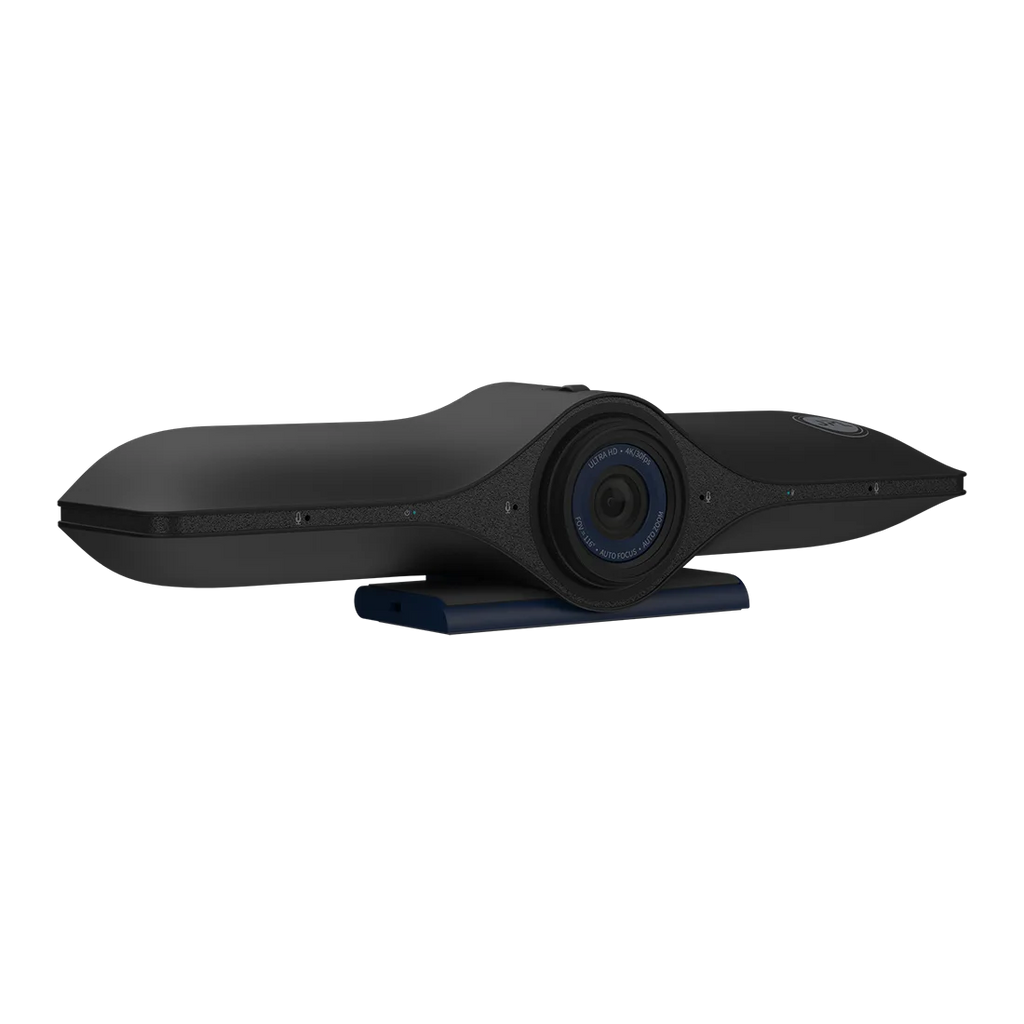

JPL Agora BYOD 4K Ultra HD All-In-One Video Sound Bar with Intelligent Zoom

“Hot swappable USB connectivity”. The user can disconnect the Agora from using one USB device (e.g., PC, laptop, phone or tablet) and reconnect to another USB device without having to turn off the equipment.

New faster-processing AI lens with fast facial recognition

• New faster-processing AI lens with fast facial recognition
• HDMI port with 1m HDMI-to-HDMI cable
• 2.5m USB 3.1 Type-C to Type-C cable for BYOD use
• Gesture control – zoom in and out with hand gestures
• USB-C Port-1: connect PC for screen mirroring or live-stream sharing
• USB-A Port-2: connect phone, tablet, keyboard, or mouse
• Plug-and-play solution – no software or downloads needed
• ePTZ 3× digital zoom powered by AI – lens pans and tilts automatically
• 4 full-duplex digital microphones with up to 10m voice pickup
• 116° field of view – ideal for up to 16-person conference rooms
• Compatible with all Mac/PC computers and softphones
• LED indicators for power and microphone mute
• Multi-angled desk, monitor, and wall-mount options with tilt adjustment
• Magnetic privacy lens cover

Features
• 4K UHD 3840 × 2160p – new generation 8-million-pixel resolution
• 4K high-end glass lens – no optical distortion
• H.264 codec for superior image compression
• 4 stereo duplex microphones with 10m voice pickup
• Built-in camera in-use LED indicator
• 2.5m USB 3.1 Type-C to Type-C cable included
• HDMI port with 1m HDMI-to-HDMI cable included
• USB-C port for PC connection (in-house or live-stream screen sharing)
• USB-A port to connect phone, tablet, keyboard, or mouse
• Automatic low-light correction for clear imaging in any environment
• AEC – Automatic Echo Cancellation
• ANS – Automatic Noise Suppression

Certifications
UKCA, CE, FCC, RoHS, REACH

Dimensions
352mm wide, 75mm deep, 80mm high

Warranty
3 years limited warranty (2 years standard repair or replacement warranty plus a 3rd year cover on non-moving parts)

MOQ
Master Shipping Carton: 4

SKU
575-375-001

EAN
5060126959502

Technical Data

Camera Parameters:
• Total Pixels: 8.3 million pixels – 4K resolution
• Imaging Sensor: 1/2.8 inch CMOS sensor
• Aperture: F/No. = 2.5 ±5%
• Image Colour: 24-bit
• Maximum Effective Pixel: 3840 × 2160
• Output Image Format: MJPG (4K) and YUY2 (1080p)
• Field of View: D = 116°, H = 107°, V = 74°
• Intelligent Zoom: 16-step, 3× digital zoom
• Minimum Illumination: 0.5 Lux
• Exposure: Automatic Exposure (AE)
• White Balance: Auto White Balance (AWB)
• Dynamic Black Level Calibration (ABLC)
• Resolution @30fps: 3840×2160, 1920×1080, 1280×720, 640×480

Microphone Parameters:
• MIC Specification: 4 × digital microphones
• SNR: ≥65.5dB
• Sensitivity: -26dB Fs
• Far-field voice pickup distance: 0–10 metres
• Horizontal voice pickup: 180°
• Communication Mode: Full duplex

Speaker Parameters:
• Speaker Specification: 2 × ø40.0mm × 28.0mm
• Power: 3W × 2
• Impedance: 4Ω
• Frequency Range: 20Hz–20KHz
• Distortion: 5% Max

Bluetooth Parameters:
• Bluetooth Standard: Bluetooth 4.1 / EDR / BLE
• Frequency: 2400–2480MHz
• TX Power: 4±1.5dBm (typical)
• RX Sensitivity: -85dBm (typical) π/4 DQPSK
• Operating Systems: Windows, Linux, Android
• Operating Distance: 10 meters

Other Parameters:
• Interface Type: USB 2.0 Type-A or USB Type-C
• Voltage: DC 12V < 2000mA
• OS Support: Windows 2000/XP/Vista/7/8/10, Win CE with UVC, Linux with UVC (above Linux 2.6.26), Mac OS X 10.4.8 or later, Android 4.0 with UVC
• Size (camera / gift box): 352 × 75 × 80mm / 405 × 196 × 109mm
• Weight (camera / gift box): 960g / 1542g

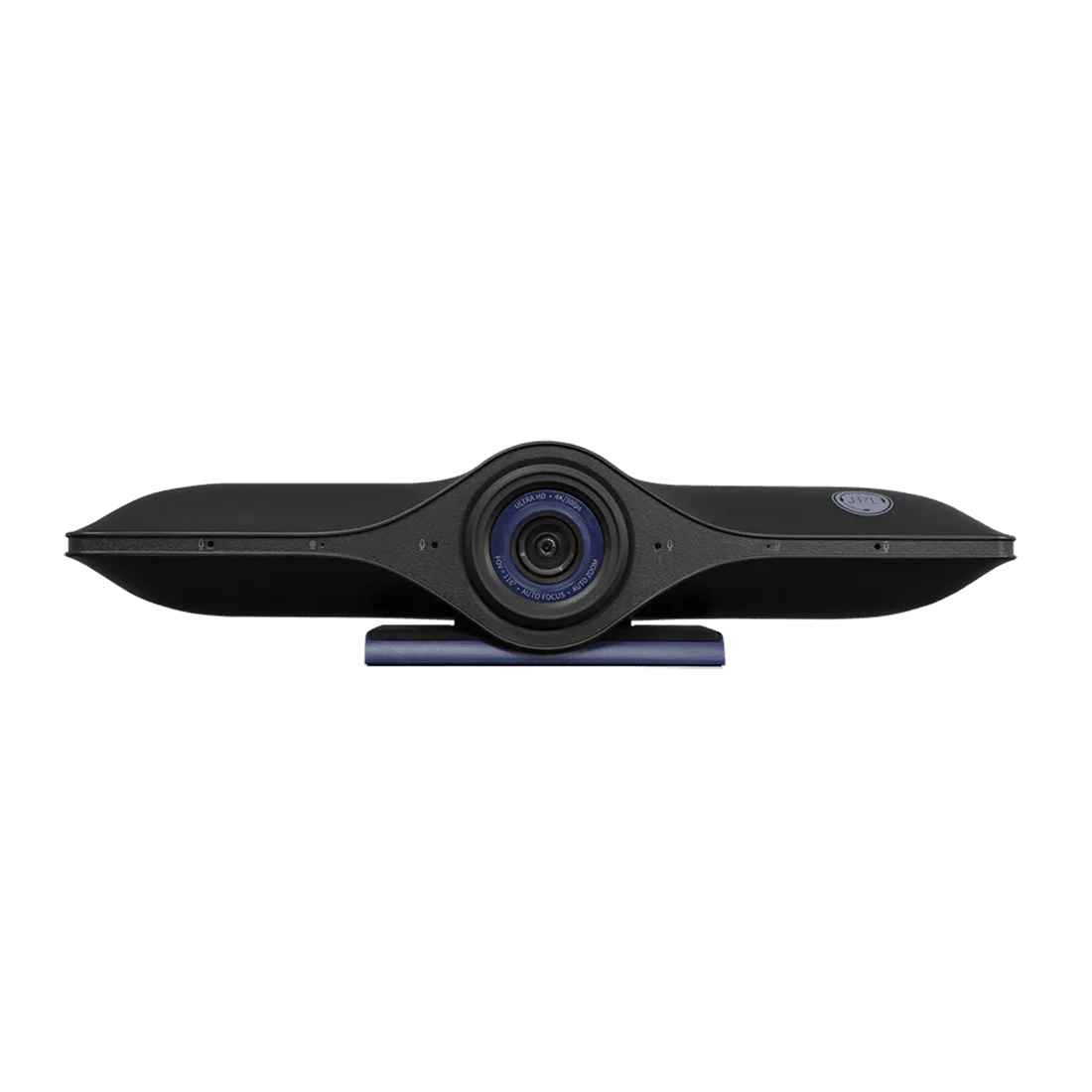

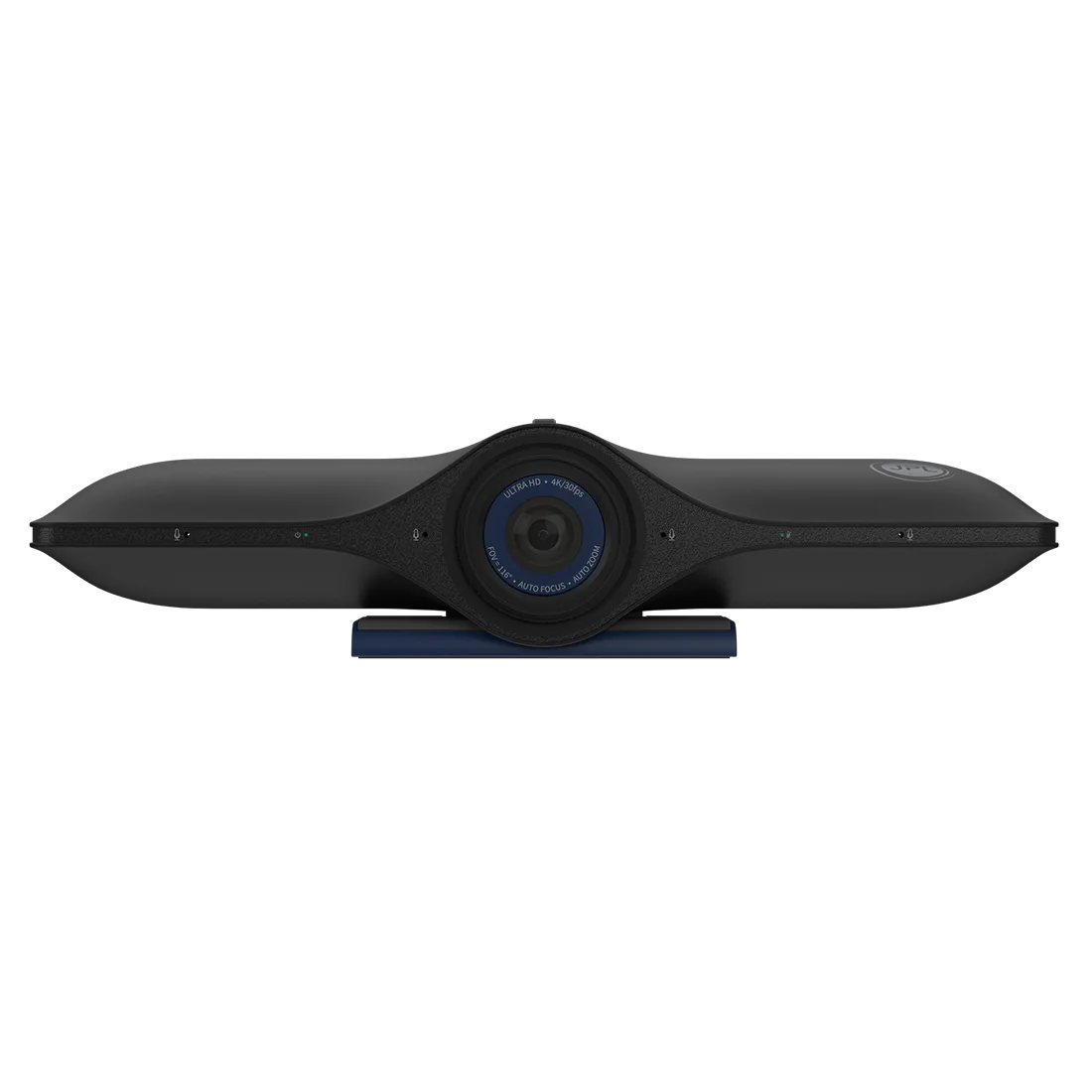

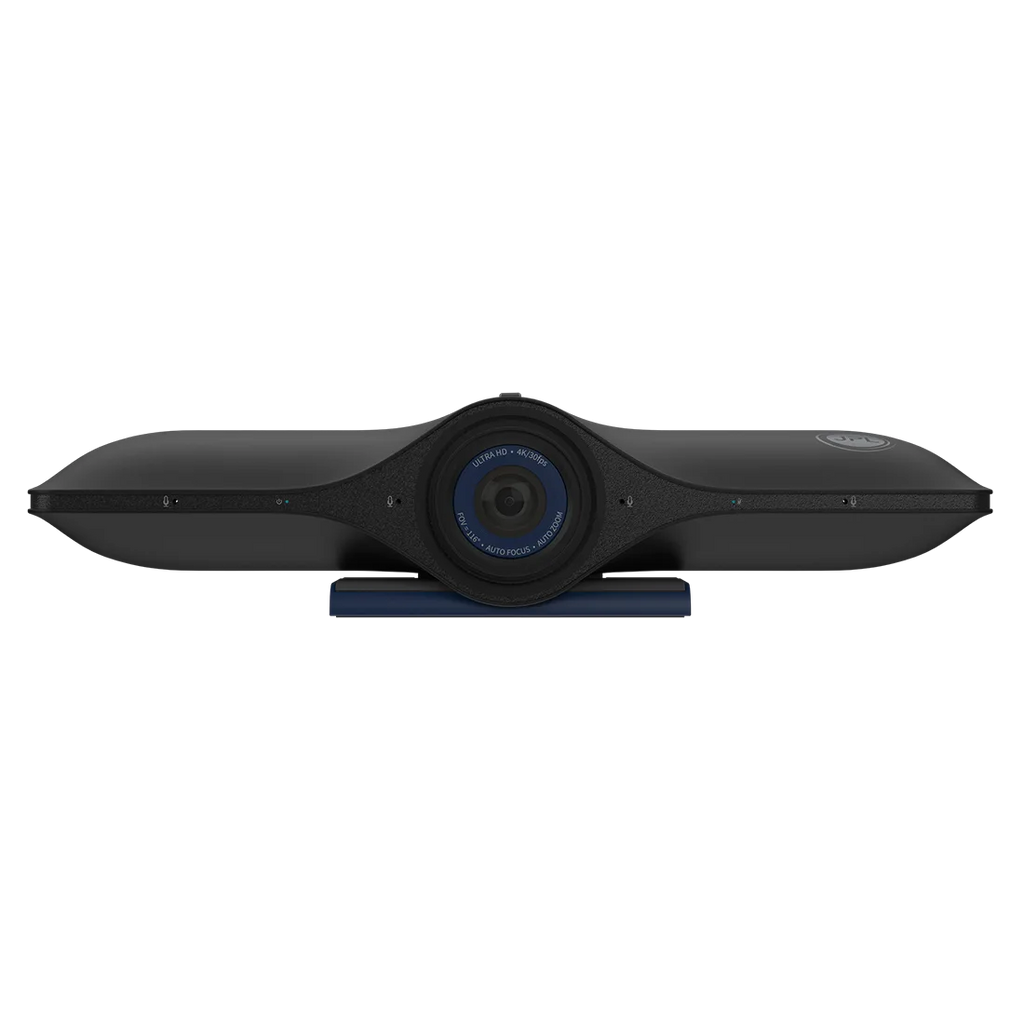

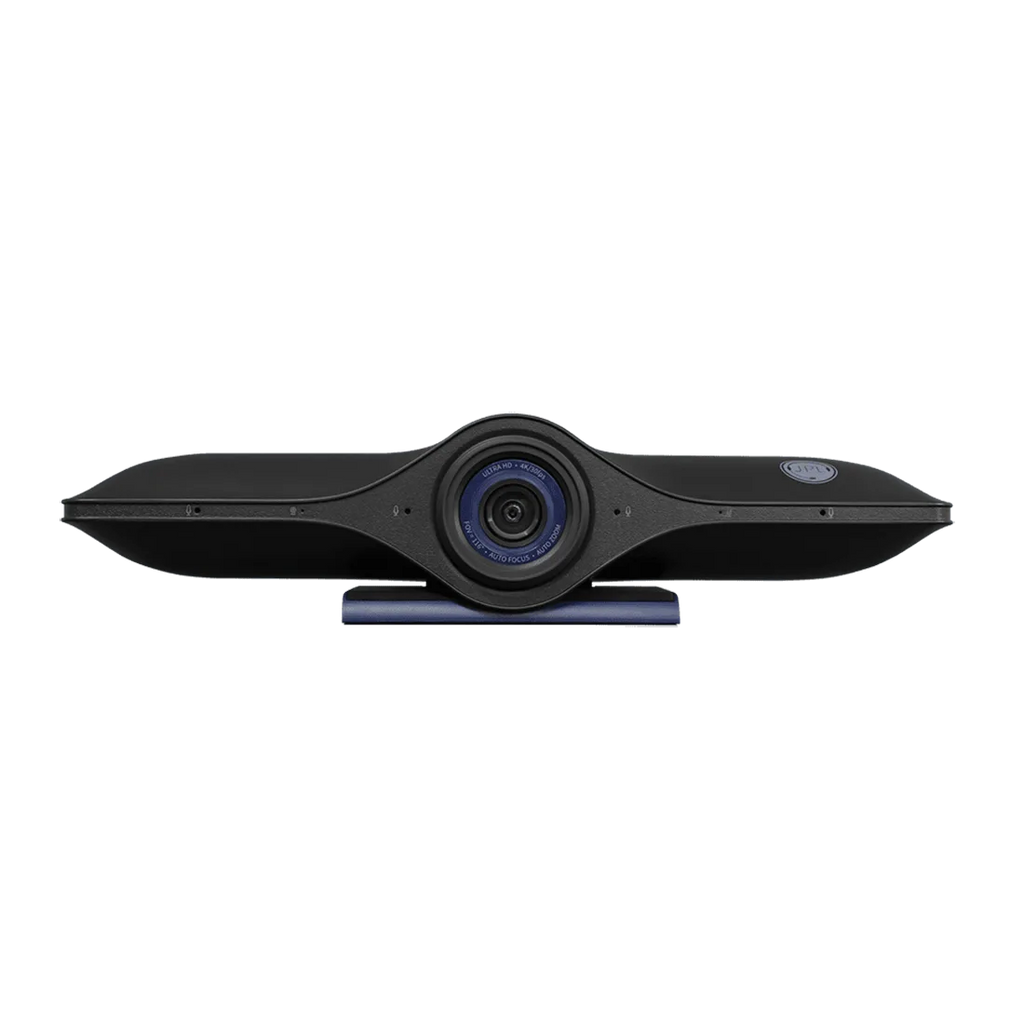

4K glass lens with 116° field of view
4 x stereo duplexed microphones for smooth natural conversations

The JPL Agora 3840 x 2160p Ultra HD Bluetooth conference room video sound bar comes with a Bluetooth remote control, magnetic privacy lens cover and a USB-A to USB-C adapter to allow optional connection to any USB-C device.

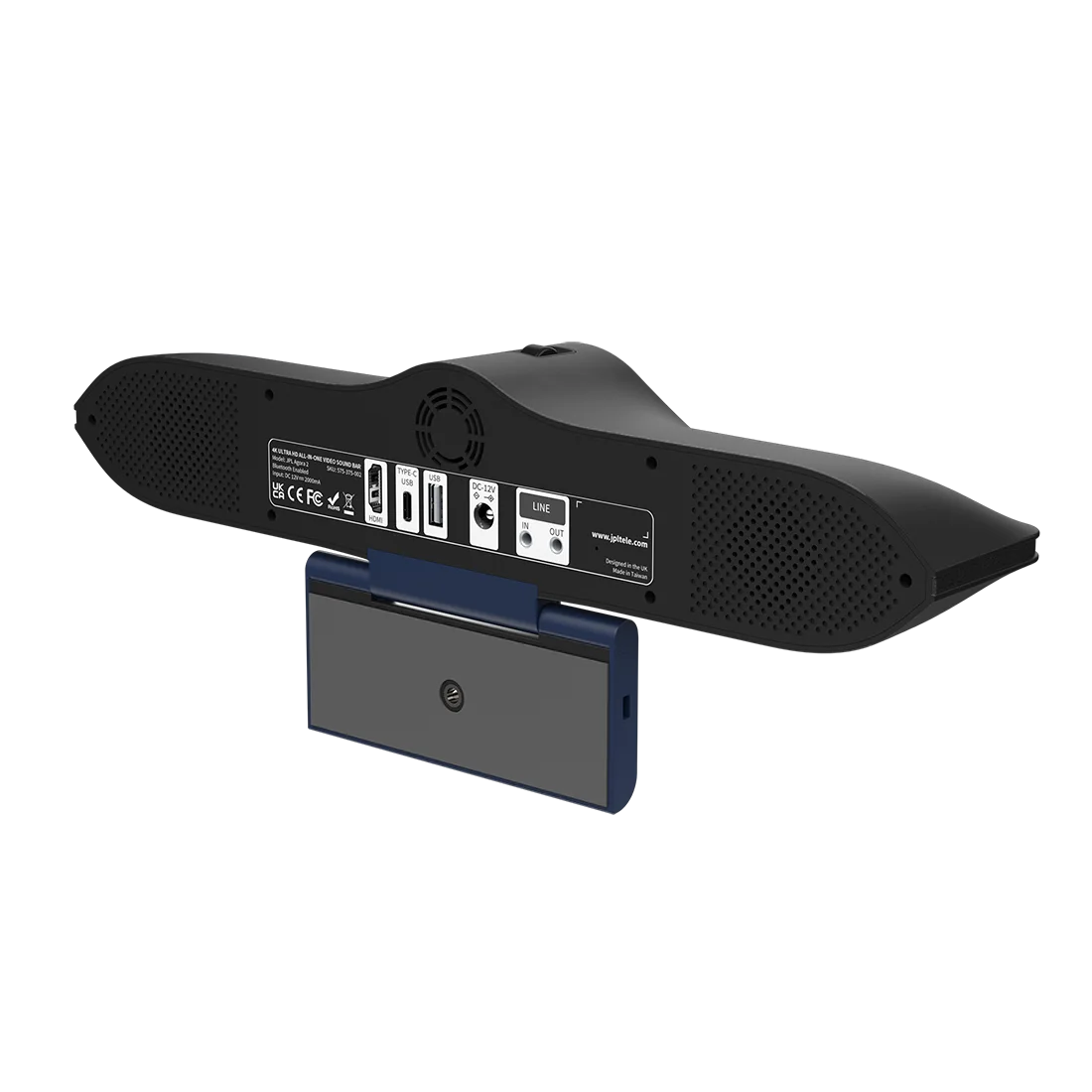

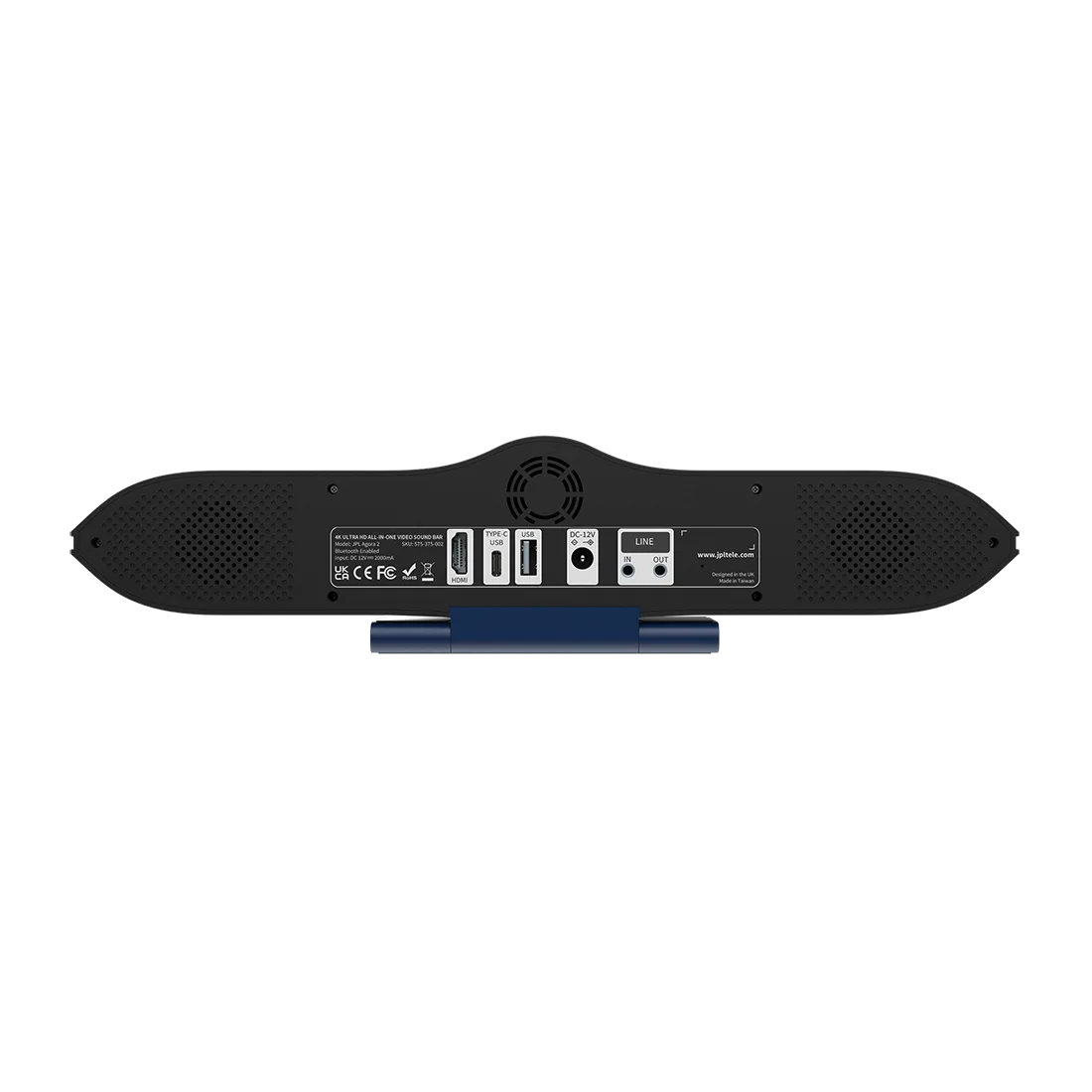

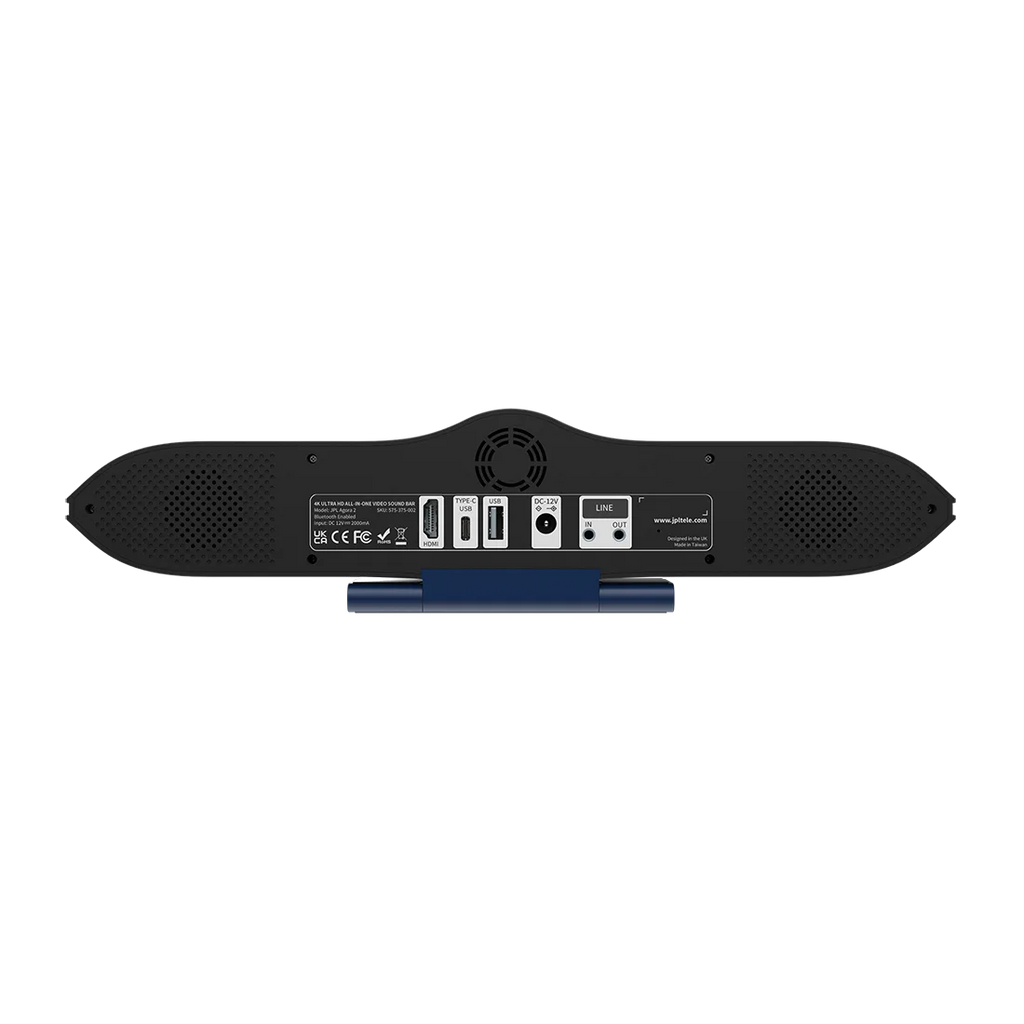

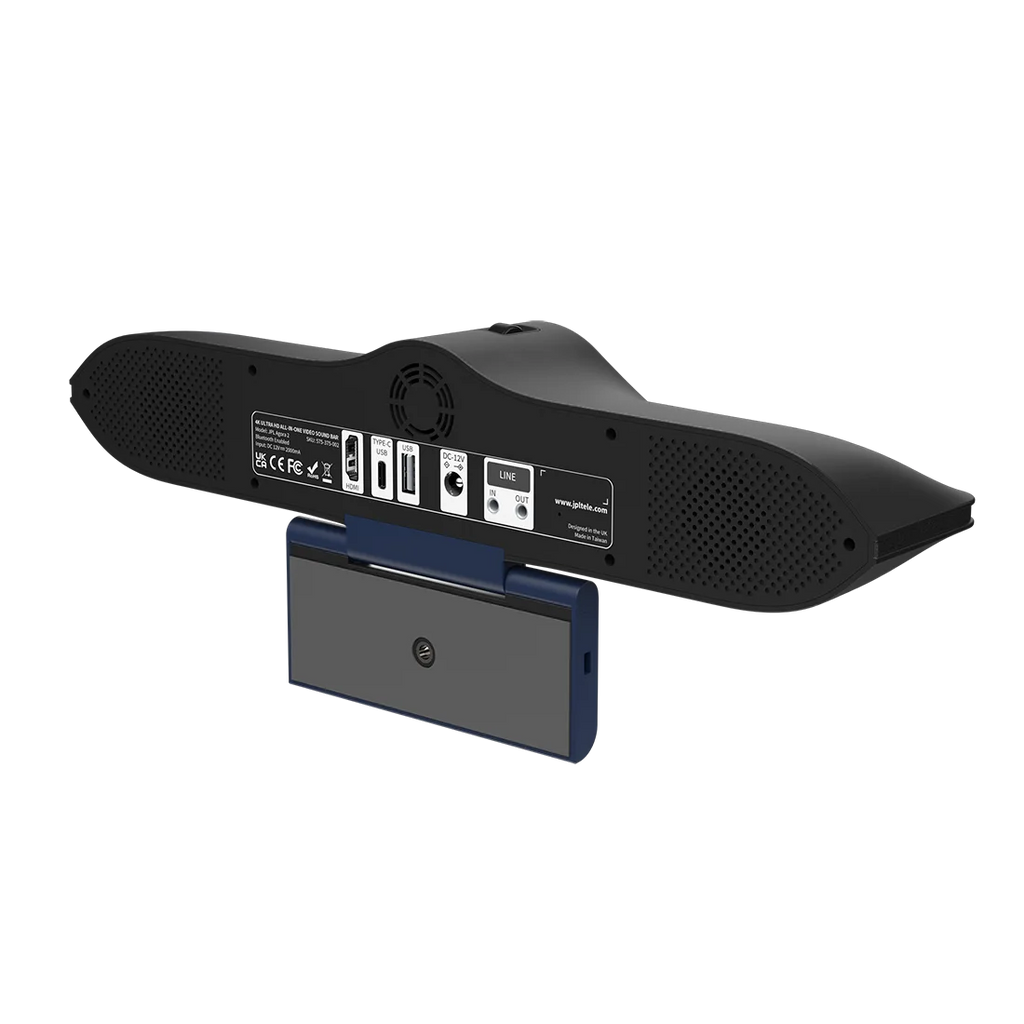

2 high power all-range speakers at the back of the camera

Camera status indicator
Microphone/Speaker status indicator

Bluetooth remote control:

• Power on/off
• Mute, volume, zoom
• Video direction control
• Menu, page-up, page-down
• Built-in Microphone
• BT pairing

Intelligent ePTZ 3x digital auto zoom to focus on the person speaking in the room
Fully adjustable mount
Magnetic privacy lens cover

Optimised to work with:
Microsoft Teams, Zoom, Google Meet, Skype, Webex, and more
